Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

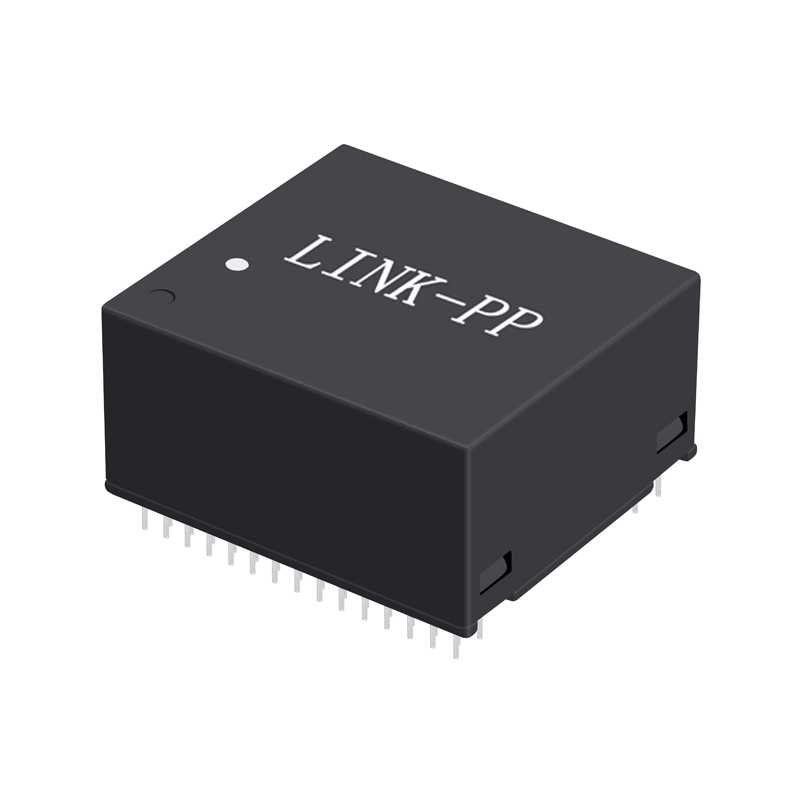

Model Number: HB6603NL
Payment & Shipping Terms
Minimum Order Quantity: 50pcs, free sample is available
Price: $0.08-$2.02
Packaging Details: Tape and Reel
Delivery Time: Ships within 15 days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Product Type: |
Ethernet Magnetics |
PoE Rating: |
4Pair PoE+ |
Part Number: |
HB6603NL |
Operating Temperature: |
0℃~+70℃ |
Data Rate: |
1000BASE-T |
No. Of Channels/Ports: |
Quad-port |
Product Type: |
Ethernet Magnetics |
PoE Rating: |
4Pair PoE+ |
Part Number: |
HB6603NL |
Operating Temperature: |
0℃~+70℃ |
Data Rate: |
1000BASE-T |
No. Of Channels/Ports: |
Quad-port |
| Attribute | Value |
|---|---|
| Product Type | Ethernet Magnetics |
| PoE Rating | 4Pair PoE+ |
| Part Number | HB6603NL |
| Operating Temperature | 0℃~+70℃ |
| Data Rate | 1000BASE-T |
| No. of Channels/Ports | Quad-port |
| Parameter | Value |
|---|---|
| Part Number | HB6603NL |
| Product Series | PoE Ethernet Transformer |
| Mounting | THT |
| Data Rate | 1000BASE-T |
| Number of Channels/Ports | 4 |
| Dimensions (L×W×H) | 29.00mm × 26.50mm × 13.00mm |
| Turns Ratio | 1CT:1CT |
| Isolation Voltage | 1500VAC |
| Media side inductance | 350uH MIN @100KHz, 0.1V |
| Insertion Loss | -1.0dB MAX @ 1-100MHz |
| Return Loss | -16dB MIN @ 1-40MHz -(10-20 log10(f/80)) @ 40<f≤100MHz, dB MIN |
| PoE (Current Per Pair) | 600mA |
| Isolation (Pri: Sec) | 1500Vrms |
| Note | 4Pair PoE+ (60W) |
| Operating Temperature | 0 to +70°C |
| Storage Temperature | -20 to +125°C |
| RoHS | YES |
| Moisture Sensitive Level | 1 |
| Maximum Peak Solder Temperature | 260°C |
