Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: RoHS
Model Number: HB6604NL
Payment & Shipping Terms
Minimum Order Quantity: 1pcs，Free samples
Price: $0.09-$1.83
Packaging Details: Tube Packaging
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Number Of Channels/Ports: |
Quad Port |
P/N: |
HB6604NL |
PoE (Current Per Pair): |
600mA |
Mounting Style: |
THT |
PoE Rating: |
4Pair PoE+ (6oW) |
Isolation Voltage: |
1500 VAC |
Data Rate: |
1000BASE-T |
Turns Ratio: |
1CT:1CT |
Number Of Channels/Ports: |
Quad Port |
P/N: |
HB6604NL |
PoE (Current Per Pair): |
600mA |
Mounting Style: |
THT |
PoE Rating: |
4Pair PoE+ (6oW) |
Isolation Voltage: |
1500 VAC |
Data Rate: |
1000BASE-T |
Turns Ratio: |
1CT:1CT |
| Attribute | Value |
|---|---|
| Number of Channels/Ports | Quad Port |
| P/N | HB6604NL |
| PoE (Current Per Pair) | 600mA |
| Mounting Style | THT |
| PoE Rating | 4Pair PoE+ (60W) |
| Isolation Voltage | 1500 VAC |
| Data Rate | 1000BASE-T |
| Turns Ratio | 1CT:1CT |

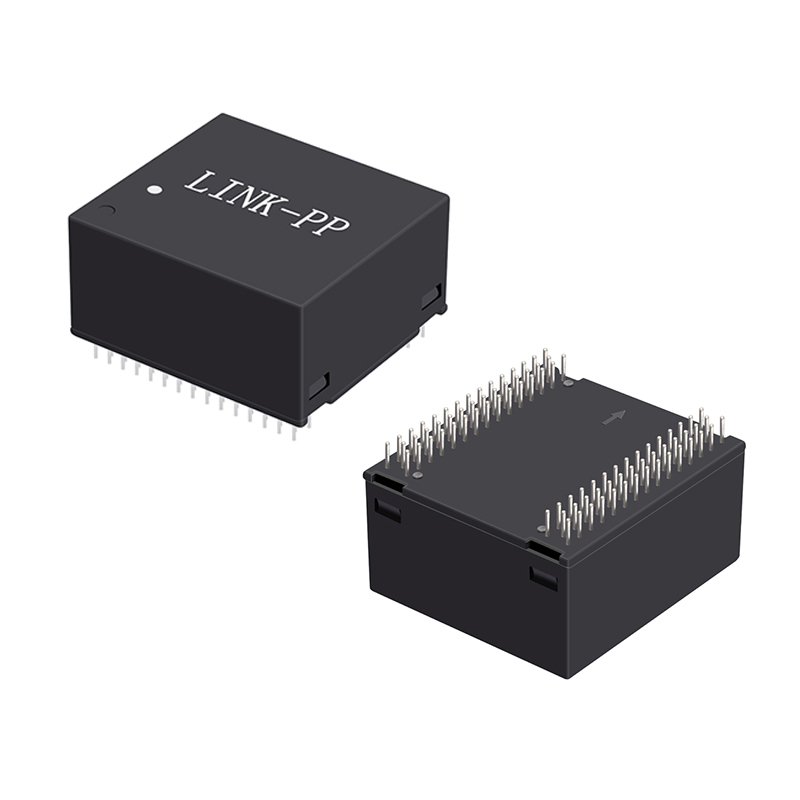

HB6604NL is a quad-port, 1000Base-T magnetic module designed for through-hole mounting. It is engineered to support 60W 4-Pair Power over Ethernet (4PPoE) applications. This high-performance LAN Transformer is ideal for network equipment requiring high port density and high-power PoE delivery. Key applications include:
| Feature | Specification | Description |
|---|---|---|
| Part Description | MOD,QUAD, 1GPP, 1:1,4PPoE 60W, 88Pin THD, NPB, TU | Module, Quad-Port, 1Gbps, 1:1 Turns Ratio, 4-Pair PoE 60W, 88-Pin Through-Hole, Lead-Free, Tube Packaging |
| Data Rate | 1000BASE-T | Supports Gigabit Ethernet speeds |
| Number of Ports | Quad | Integrates four independent Ethernet channels into a single compact module, optimizing PCB real estate |
| PoE Capability | 4PPoE 60W | Supports 4-Pair Power over Ethernet, delivering up to 60 watts, compliant with the IEEE 802.3bt standard |
| Isolation Voltage | 1500 VAC | Provides 1500 Volts (AC) of dielectric isolation, enhancing safety and signal integrity |
| Turns Ratio | 1CT:1CT | Features a 1:1 center-tapped turns ratio, a common standard for Ethernet magnetics |
| Operating Temp. | 0°C to +70°C | Suitable for commercial-grade operating environments |
| Mounting Style | Through-Hole | Utilizes a traditional through-hole mounting method for a robust and reliable mechanical connection |
| Compliance | RoHS Compliant | Yes. Adheres to the Restriction of Hazardous Substances (RoHS) directive; specified as lead-free (NPB - No-Lead Process B) |
