Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: RoHS
Model Number: HB6605NL
Payment & Shipping Terms
Minimum Order Quantity: 1pcs，Free samples
Price: $0.09-$1.85
Packaging Details: Tube Carton Package
Delivery Time: About 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5000K-PCS/Month
Turns Ratio: |
1CT:1CT |
Isolation Voltage: |
1500 VAC |
Data Rate: |
1000BASE-T |
Mounting Style: |
THT |
Operating Temperature: |
0 To +70°C |
No. Of Channels/Ports: |
Quad-port |
Part Number: |
HB6605NL |
Length: |
29.00mm |
Width: |
26.50mm |
Height: |
13.00mm |
Turns Ratio: |
1CT:1CT |
Isolation Voltage: |
1500 VAC |
Data Rate: |
1000BASE-T |
Mounting Style: |
THT |
Operating Temperature: |
0 To +70°C |
No. Of Channels/Ports: |
Quad-port |
Part Number: |
HB6605NL |
Length: |
29.00mm |
Width: |
26.50mm |
Height: |
13.00mm |
| Attribute | Value |
|---|---|
| Turns Ratio | 1CT:1CT |
| Isolation Voltage | 1500 VAC |
| Data Rate | 1000BASE-T |
| Mounting Style | THT |
| Operating Temperature | 0 to +70°C |
| No. of Channels/Ports | Quad-port |
| Part Number | HB6605NL |
| Length | 29.00mm |
| Width | 26.50mm |
| Height | 13.00mm |

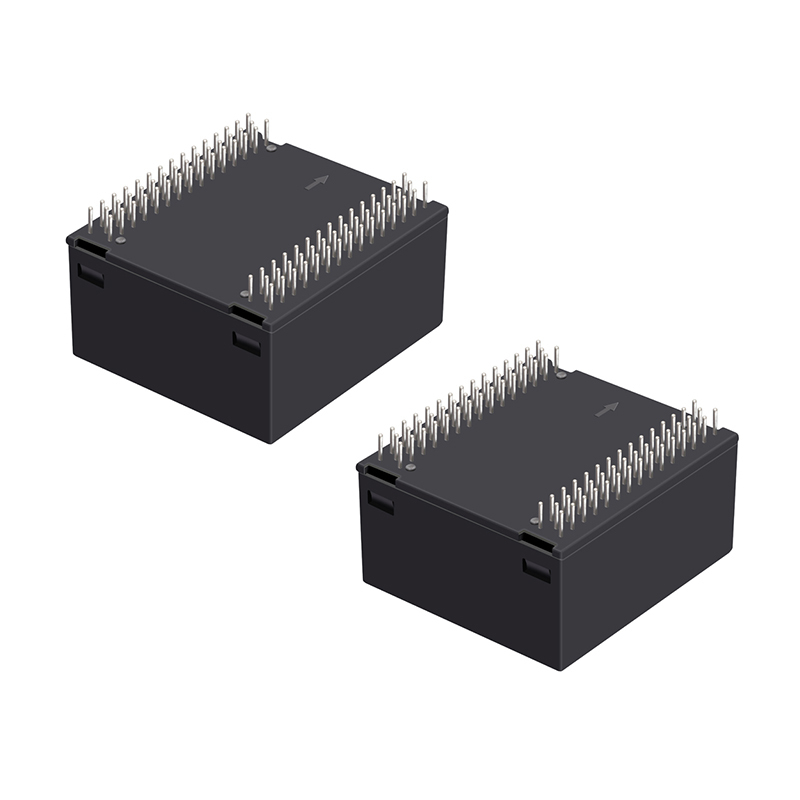

The HB6605NL is a quad-port 1000BASE-T Ethernet magnetic module designed for high-performance networking applications. Supporting data rates up to 1Gbps, it integrates four channels with a 1CT:1CT turns ratio and provides 1500VAC isolation to ensure reliable signal integrity and system protection.
With support for 4-pair PoE+ up to 60W (600mA per pair), it enables efficient power delivery alongside data transmission, making it ideal for applications such as enterprise switches, industrial access points, IP cameras, and other PoE-enabled devices.
Built with robust materials including a thermoset plastic housing rated UL 94V-0 and a copper alloy lead frame, the HB6605NL offers stable performance and compliance with IEEE 802.3 and RoHS standards, ensuring long-term reliability in demanding environments.
| Parameter | Details |
|---|---|
| Part Number | HB6605NL |
| Description | MOD, QUAD, 1GPP, 1:1, 4PPoE 60W, 88Pin THD NPB, TU |
| Data Rate | 1000BASE-T (Gigabit Ethernet) |
| No. of Channels/Ports | Quad (4 Ports) |
| Isolation Voltage | 1500 VAC (Pri:Sec) |
| Turns Ratio | 1CT:1CT |
| Media Side Inductance (@100KHz/0.1V) | ≥ 350 µH |
| Insertion Loss (dB Max) | [Typical Ethernet spec compliance] |
| Return Loss (dB Min) | [Compliant with IEEE 802.3 standards] |
| PoE Support | 4-Pair PoE+ (up to 60W), 600 mA per pair |
| Temperature Range (Operating) | 0°C to +70°C |
| Temperature Range (Storage) | -25°C to +85°C |
| Mounting Style | Through-Hole, Wave Solder 260°C/5s (max) |
| Compliance | IEEE 802.3, RoHS Compliant |
| Header Material | Thermoset Plastic, Black |
| Material Flammability Rating | UL 94V-0 |
| Lead Frame Material | Copper Alloy |
| Plating | Tin electro-deposited over Nickel |
| Finish | Matte Tin Solder |
