Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

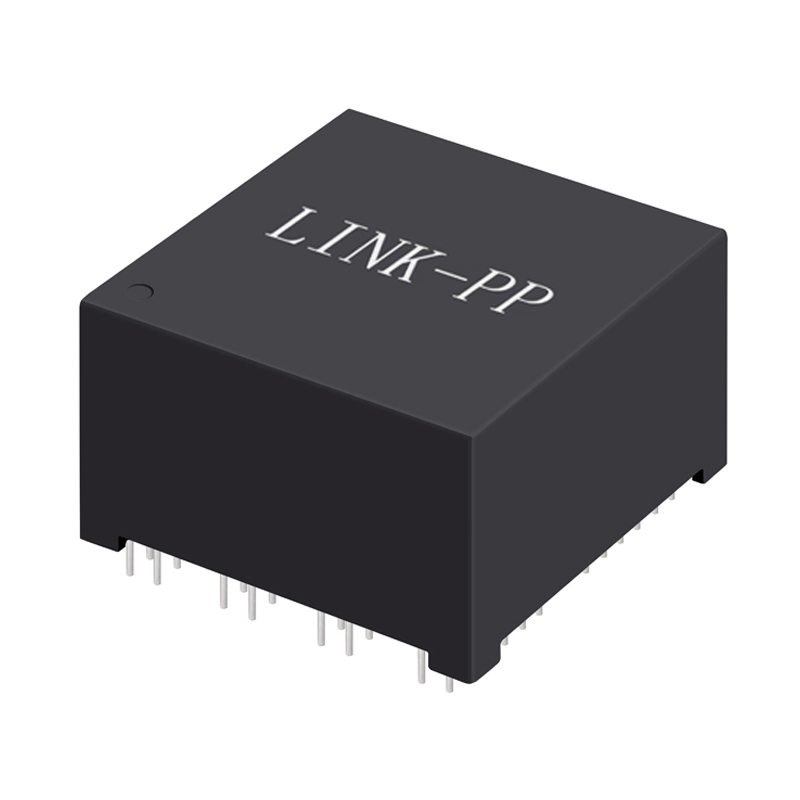

Model Number: HB5G601NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Part Number: |
HB5G601NL |
Transformer Type: |
Power Over Ethernet Transformer |
Mounting Type: |
Through Hole |
Number Of Ports: |
Quad |
Data Rate: |
5GBASE-T |
Specification: |
IEEE 802.3bt |
PoE: |
4PPoE 60W |
Machanicals: |
29.00x33.50x16.80mm |
Isolation Voltage: |
1500 VAC |
Inductance: |
180µH |
Part Number: |
HB5G601NL |
Transformer Type: |
Power Over Ethernet Transformer |
Mounting Type: |
Through Hole |
Number Of Ports: |
Quad |
Data Rate: |
5GBASE-T |
Specification: |
IEEE 802.3bt |
PoE: |
4PPoE 60W |
Machanicals: |
29.00x33.50x16.80mm |
Isolation Voltage: |
1500 VAC |
Inductance: |
180µH |
|
Parameter |
Value / Range |
Notes |
|---|---|---|
|
Product Category |
Ethernet Magnetics |
Power over Ethernet LAN Transformer |
|
Mounting Style |
Through-Hole |
|
|
Number of Ports |
Quad (4-Port) |
|
|
Data Rate |
5GBASE-T |
Also supports 1/2.5GBASE-T |
|
Application |
LAN, Ethernet (Non-PoE, PoE, PoE+) |
|
|
PoE Standard |
4-Pair PoE+ (60W) |
IEEE 802.3bt |
|
PoE Current |
600 mA |
Per Pair |
|
Turns Ratio |
1CT:1CT |
|
|
Media Side Inductance |
180 µH (min) |
@100KHz, 0.1V |
|
Insertion Loss |
-1.0 dB (max) |
1-100 MHz |
|
|
-2.0 dB (max) |
100-250 MHz |
|
Return Loss |
-16 dB (min) |
1-40 MHz |
|
|
-(16-10 log10(f/40)) dB (min) |
40 < f ≤ 250 MHz |
|
Isolation Voltage |
1500 Vrms / 1500 VAC |
Primary to Secondary |
|
Operating Temperature |
0°C to +70°C |
|
|
RoHS Compliant |
Yes |
