Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

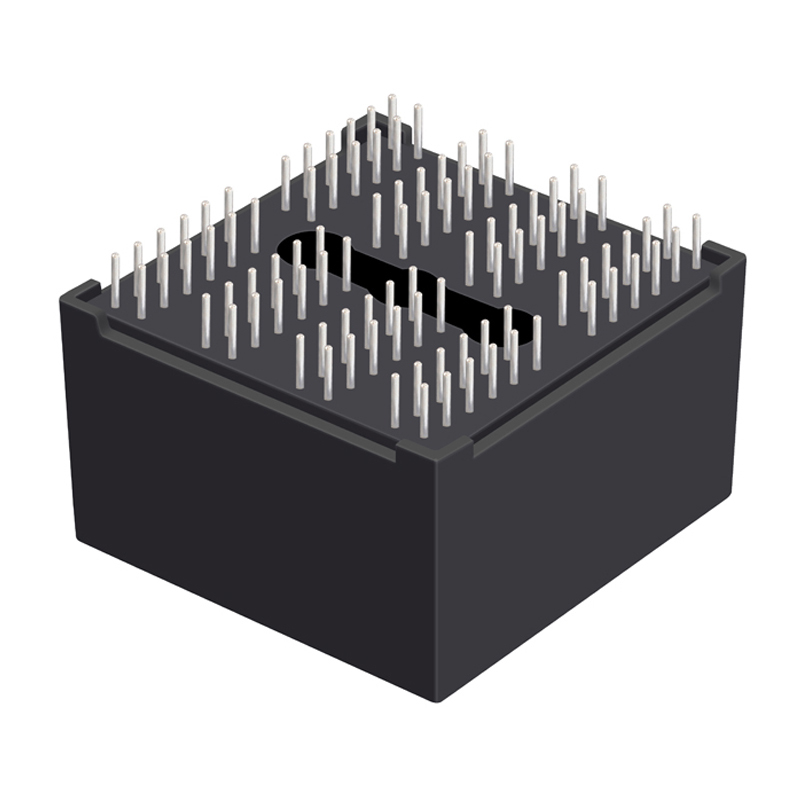

Model Number: HXB6607NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Number Of Pins: |
96-pin |
Number Of Ports: |
4-Port |
Isolation Voltage: |
1500 Vrms |
Wave Solder: |
260°C/5s |
Data Rate: |
1000BASE-T |
Product Module: |
HXB6607NL |
Free Samples: |
Support |
RoHS: |
Fully RoHS Compliant |
Number Of Pins: |
96-pin |
Number Of Ports: |
4-Port |
Isolation Voltage: |
1500 Vrms |
Wave Solder: |
260°C/5s |
Data Rate: |
1000BASE-T |
Product Module: |
HXB6607NL |
Free Samples: |
Support |
RoHS: |
Fully RoHS Compliant |
| Parameter | Specification |
|---|---|
| Part Number | HXB6607NL |
| Turns Ratio | 1CT : 1CT |
| OCL @100KHz, 100mV | 260 µH MIN with 8mA DC bias |
| Insertion Loss | 1–100 MHz: -1.0 dB MAX |
| Return Loss | 1–40 MHz: -16 dB MIN40–100 MHz: –(10 – 20·log₁₀(f/80)) dB MIN |
| Isolation (Pri : Sec) | 1500 Vrms |
| PoE Support | 4-Pair PoE+ (IEEE 802.3at), up to 60W |
| PoE Current | 600 mA per pair |
| No. of Channels/Ports | Quad (4-port) |
| Data Rate | 1000BASE-T Gigabit Ethernet |
| Mounting Style | Through-hole technology (THT), 96-pin package |
| Operating Temperature | -40°C to +85°C |
| Environmental | RoHS compliant |
| Applications | Industrial Ethernet, PoE+ switches, IP cameras, telecom systems, rugged devices |
The PoE LAN Transformer will be carefully packaged in a sturdy cardboard box to ensure its safety during transit. The product will be wrapped in bubble wrap to prevent any damage during shipping.
