Model Number: SM42P01EL
Payment & Shipping Terms
Minimum Order Quantity: 800 pcs
Price: $0.06-$3.2
Packaging Details: Tape & Reel, 800 pcs./reel
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
SM42P01EL |
Type: |
PoE Transformers |
Data Rate: |
5G BASE-T |
Termination Style: |
SMT |
Operating Temperature (Commercial Grade): |
-40-+85°C |
Isolation Voltage: |
1500 VAC, 60 S |
Inductance: |
230uH |
Number Of Channels: |
Quad |
Part Number: |
SM42P01EL |
Type: |
PoE Transformers |
Data Rate: |
5G BASE-T |
Termination Style: |
SMT |
Operating Temperature (Commercial Grade): |
-40-+85°C |
Isolation Voltage: |
1500 VAC, 60 S |
Inductance: |
230uH |
Number Of Channels: |
Quad |

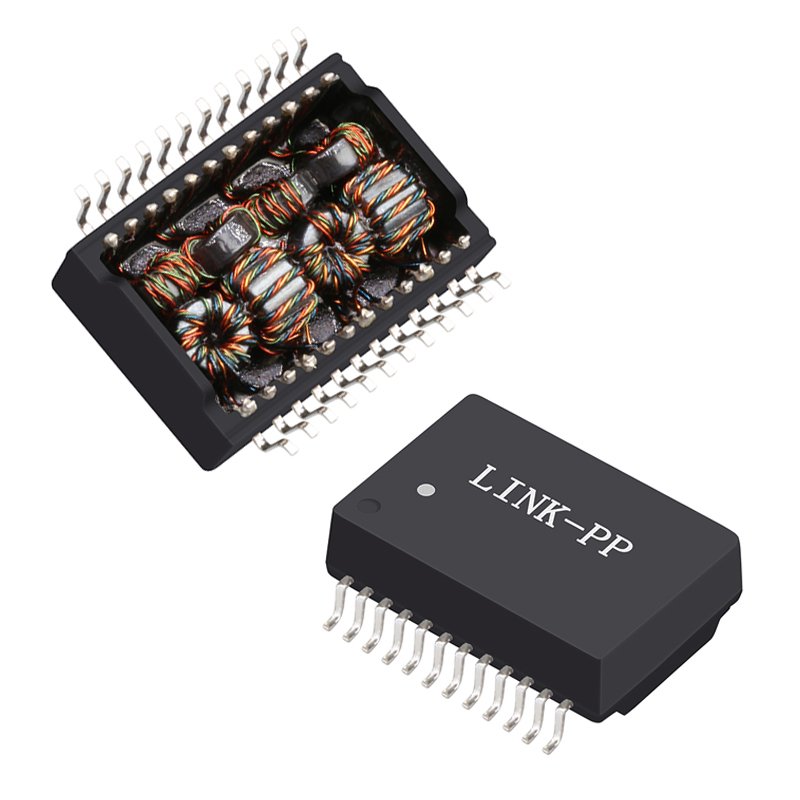

SM42P01EL Chip LAN Transformer Module designed for 5 Gigabit Ethernet (5GbE) applications, supporting PoE+ (Power over Ethernet Plus). This surface-mount (SMT) transformer integrates common-mode chokes to ensure superior EMI suppression, signal integrity, and isolation performance. Engineered for high-speed networking, it provides reliable connectivity for next-generation Ethernet devices requiring efficiency, compact size, and robust power delivery.
| Parameter | Specification |
|---|---|
| Inductance | 230 µH min. @ 100 kHz, 0.1 V |
| Insertion Loss (TD-MX) | 1–100 MHz: −1.0 dB max. 100–250 MHz: −2.0 dB max. |
| Return Loss (TD-MX) | 1–40 MHz: −16 dB min. 40–250 MHz: −(16 − 10 log(f/40)) dB min. |
| Crosstalk | 1–250 MHz: −35 dB min. |
| DCMR (TD-MX) | 1–50 MHz: −30 dB min. 50–150 MHz: −20 dB min. 150–250 MHz: −15 dB min. |
| Hi-Pot | 1500 Vac, 60 s |
| PoE+ Current | 600 mA |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +85 °C |
