5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL

China 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier
5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier 5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL supplier

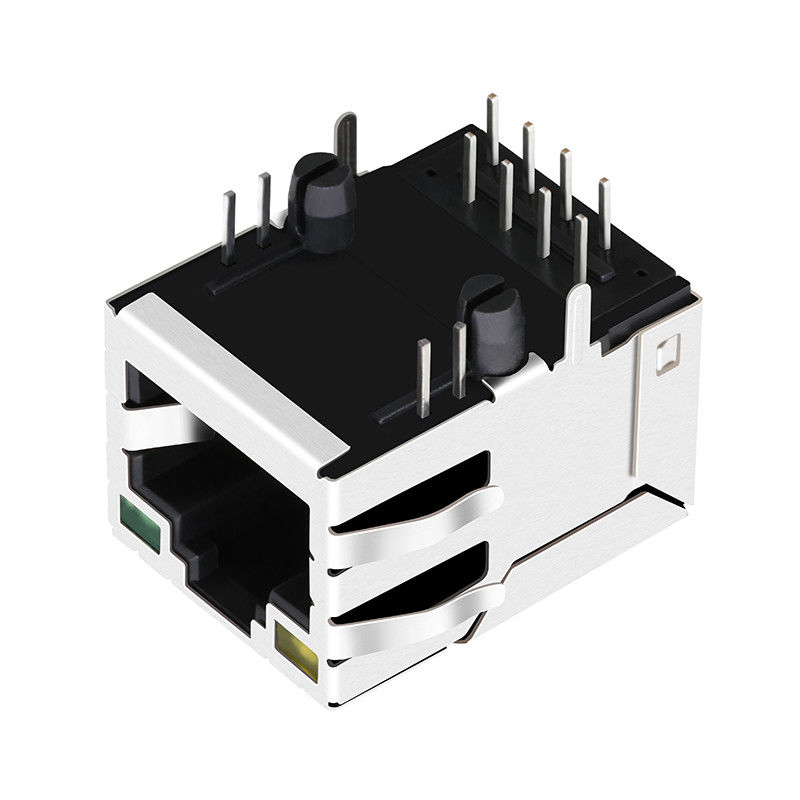

Large Image :  5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 5-6605704-9

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
LEDs: Optional Part Number: 5-6605704-9
Mass Production: LPJ16054ADNL Original Munafactuer: LINK-PP
Application: 10/100Base-T Termination: Solder



5-6605704-9 Magnetic RJ45 Jack 10 / 100Base-T Magnetic LPJ16054ADNL


Quick Details



1.10/100 Base-T Tab-Up Applications

2.8P8C Integrated Filter Rj45 Female Jack

3.5-6605704-9【Designing Model】

4.LPJ16016A28NL【 Mass Production Model】

4.LED optional, EMI-finger Optional.



Description


1X1-Tab-Up RJ45 Magjack with/without leds, meeting IEEE 802.3af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......
