Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 4-2170808-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $3-$12
Packaging Details: 20/Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Part Number: |
TE 4-2170808-1 |
Thermal Accessory Type Included: |
Heat Sink |
Cage Type: |
Ganged |
Form Factor: |
QSFP28/56 |
Number Of Ports: |
1 X 2 |
Data Rate (Max): |
28Gb/s |
Part Number: |
TE 4-2170808-1 |
Thermal Accessory Type Included: |
Heat Sink |
Cage Type: |
Ganged |
Form Factor: |
QSFP28/56 |
Number Of Ports: |
1 X 2 |
Data Rate (Max): |
28Gb/s |
| Parameter | Specification |
|---|---|
| Product Type | Cage Assembly (Pluggable I/O) |
| Ports / Configuration | 2 ports (1 × 2 matrix) |
| Max Data Rate | 28 Gb/s |
| Temperature Range | –40 °C to +85 °C (–40 °F to +185 °F) |
| Sealable | No |
| Contact Termination | Through-hole, press-fit, tail length 2.05 mm |
| PCB Thickness (recommended) | 1.57 mm (0.062 in) |
| Cage Material | Nickel Silver |
| Heat Sink | Pin type, anodized black finish |
| Heat Sink Height | 4.2 mm |
| EMI Features | Internal & external EMI springs |
| Flammability Rating | UL 94V-0 |
| Packaging | Box & Tray |
| Included Accessories | Lightpipe |

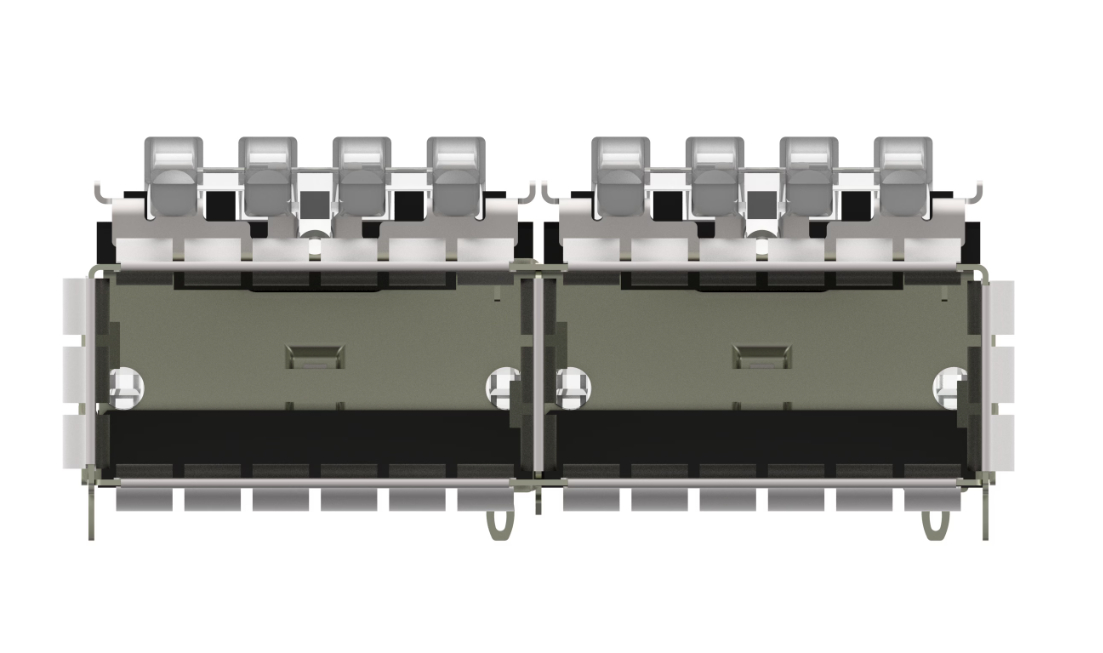

This cage assembly is intended for high-speed data transmission applications using QSFP28 / QSFP56 optical or copper modules. It is suitable for:
