Name: 4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 4-2170808-4
Price: 7.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: 4-2170808-4

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $3-$12

Packaging Details: 20/Tray

Delivery Time: In Stock Ship Within 3 Days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Ganged QSFP28 Cage, TE Connectivity 4-2170808-4, 28Gb/s Cage Assembly


Type:	QSFP28 Cage	Heat Sink:	With
Termination:	Press-Fit	Sealable:	No
Part Number:	4-2170808-4	Operating Temperature Range:	-40 – 85 °C
Mounting Type:	Through Hole	RoHS Status:	YES

Type:	QSFP28 Cage
Heat Sink:	With
Termination:	Press-Fit
Sealable:	No
Part Number:	4-2170808-4
Operating Temperature Range:	-40 – 85 °C
Mounting Type:	Through Hole
RoHS Status:	YES

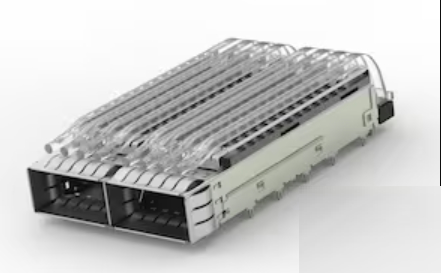

4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2

4-2170808-4 QSFP28 Cage Quick Details

Form Factor Compatibility: QSFP28 / QSFP56
Data Rate: Up to 28 Gb/s
Operating Temperature Range: –40 °C to +85 °C (–40 °F to +185 °F)
Cage Type: Ganged
Sealable: No
Thermal Accessory: Heat Sink (Pin Type, Anodized Black Finish)
EMI Containment: Internal and External EMI Springs
Included Components: Lightpipe
PCB Contact Termination: Through-Hole Press-Fit, Tin Plated, 2.05 mm Tail Length
Recommended PCB Thickness: 1.57 mm (0.062 in)
Cage Material: Nickel Silver
Heat Sink Height: 4.2 mm
UL Flammability Rating: UL 94V-0
Packaging: Box & Tray

4-2170808-4 1X2 Ganged Cage Applications

This cage assembly is designed for high-speed data transmission applications, including:

Data center switches and routers
Telecom and networking equipment
Backplane and board-to-board interconnects
Systems requiring robust thermal and EMI control under wide ambient temperature conditions

Mechanical & Environmental Considerations

Nickel Silver Cage: Provides excellent mechanical strength and conductivity for shielding
Heat Sink: Assists in heat dissipation in dense module configurations
Operating Temperature Range: Suitable for industrial, telecom, and rugged environments
Non-Sealable Design: Should be protected from dust, moisture, or contaminant ingress where necessary
