Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

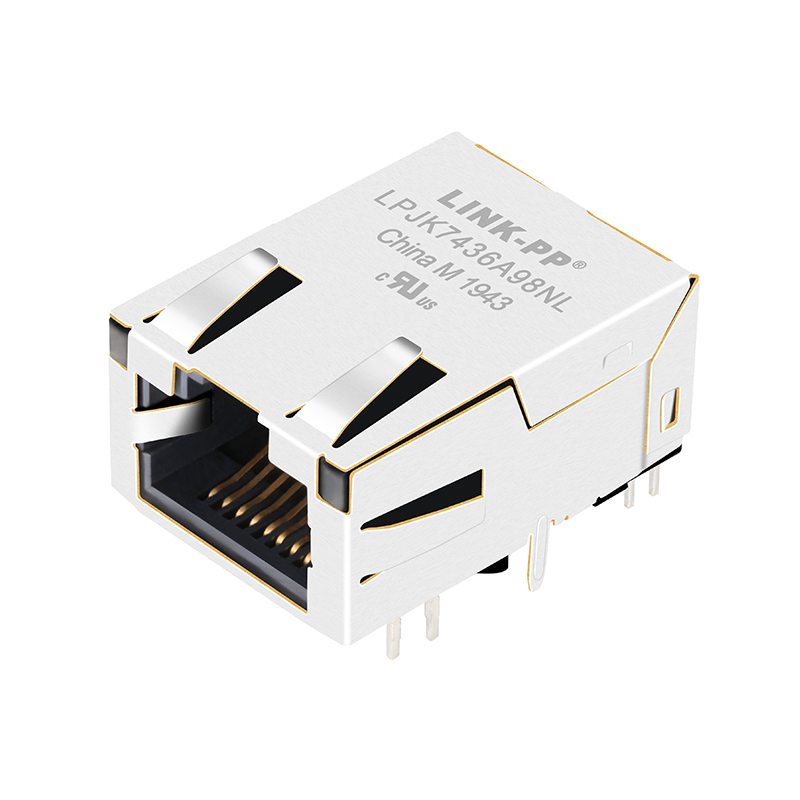

Model Number: LPJK7436A98NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
LPJK7436A98NL |
Connector Type: |
RJ45 Jack With Integrated Magnetics |
Compatible Brands: |
Wurth |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LPJK7436A98NL |
Connector Type: |
RJ45 Jack With Integrated Magnetics |
Compatible Brands: |
Wurth |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
| Category | Parameter | Value |
|---|---|---|
| General Information | Part Number | LPJK7436A98NL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LTD | |
| Product Type | RJ45 Connector with Integrated Magnetics | |
| Profile | Low-Profile, Side Entry | |
| Electrical Characteristics | Data Rate | 10/100/1000 Mbps |
| Turns Ratio (TX/RX) | 1CT : 1CT | |
| Hi-Pot Voltage | 1500 Vrms | |
| Insertion Loss | ≤ 1.0 dB (1-100 MHz) | |
| Return Loss | ≥ 16 dB (1-40 MHz) | |
| Crosstalk | ≥ 30 dB (1-100 MHz) | |
| Mechanical Data | Mounting Type | Through-Hole (THT), 90° Angle |
| Orientation | Tab Up | |
| Height | 11.30 mm | |
| Shield Type | Full Metal Shield with EMI Tabs | |
| Material & Finish | Housing | PBT + 30% GF, UL94V-0 |
| Contact | Phosphor Bronze, Gold Plated (6 µin min) | |
| Shield | SUS 304 Stainless Steel | |
| Environmental | Operating Temp | –40 °C to +85 °C |
| Storage Temp | –40 °C to +85 °C | |
| RoHS / REACH | Compliant | |
| Compliance & Safety | Ethernet Standard | IEEE 802.3 (10/100/1000Base-T) |
| UL Certification | E484635 | |
| Typical Applications | Compact Routers, IP Cameras, Network Modules, IoT Devices |
