Model Number: LPJ4012AHNL
Document: LPJ4012AHNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/1200pcs
Price: $0.7-$1.5
Packaging Details: Tray
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Part Number: |
LPJ4012AHNL |
Gender: |
Female Magjack |
Compatible Brands: |
Pulse |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LPJ4012AHNL |
Gender: |
Female Magjack |
Compatible Brands: |
Pulse |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

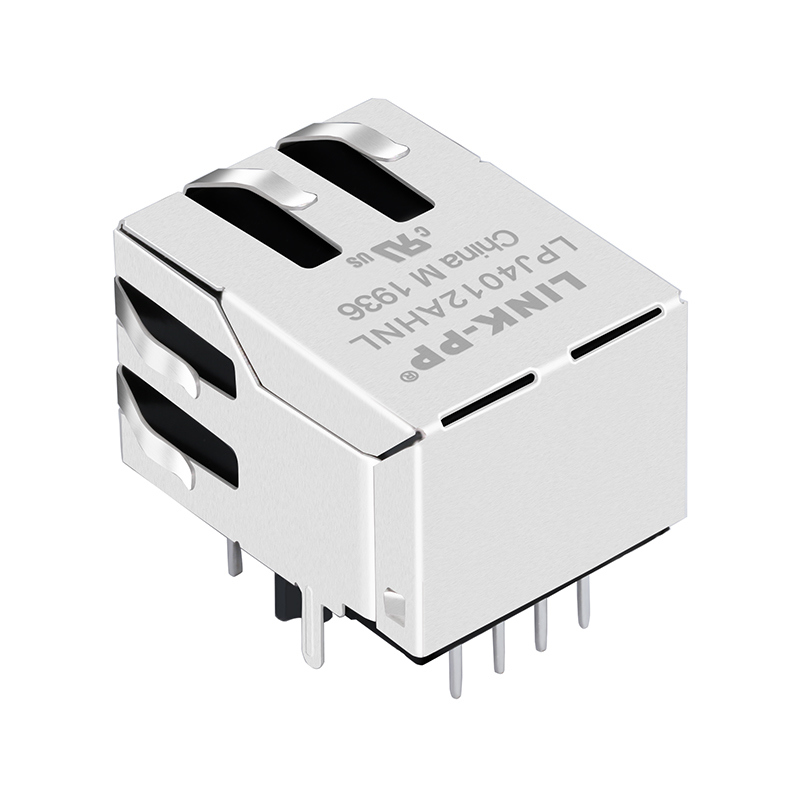

The LPJ4012AHNL from LINK-PP is a 10/100BASE-T Single Port RJ45 Female Connector featuring integrated LEDs and EMI shielding.
It is designed for Fast Ethernet (IEEE 802.3) applications such as network switches, routers, media converters, and embedded Ethernet interfaces.
|
10/100 Base-T RJ45 Connector with LEDs |
||
|---|---|---|
|
Ethernet Speed |
10/100 Base-T |
Supports IEEE 802.3 Fast Ethernet |
|
Number of Ports |
1×1 |
Single Port RJ45 Connnectors |
|
Pin Count |
8P8C |
Standard RJ45 modular interface |
|
Mounting Type |
THT (Through-Hole) |
Wave-soldered through PCB holes |
|
Orientation |
Tab Down |
Latch positioned downward for PCB edge mounting |
|
LED Indicators |
Green / Yellow |
Display link and activity status |
|
Shielding |
EMI Shield with Ground Tabs |
Provides better noise immunity |
|
Operating Temperature |
-40 °C to +85 °C |
Industrial temperature range |
|
Dimensions |
21.25 mm L × 15.93 mm W × 13.30 mm H |
Compact design |
|
Compliance |
IEEE 802.3, UL, RoHS, REACH, ISO9001/14001 |
Fully certified for global markets |
|
Packaging |
50 pcs/tray, 1200 pcs/carton |
Standard packaging |
1. Turn Ratio (±2%)
TX = 1CT : 1CT RX = 1CT : 1CT
2. Inductance (OCL)
≥ 350 µH min @ 100 kHz, 0.1 V, 8 mA DC Bias
3. Insertion Loss
≤ –1.0 dB (max) @ 1–100 MHz
4. Return Loss
–18 dB (min) @ 1–30 MHz
–15 dB (min) @ 30–60 MHz
–12 dB (min) @ 60–80 MHz
–10 dB (min) @ 80–100 MHz
5. Crosstalk
–40 dB (min) @ 30 MHz
–35 dB (min) @ 60 MHz
–30 dB (min) @ 100 MHz
6. Common Mode Rejection (CMR)
–40 dB (min) @ 30 MHz
–35 dB (min) @ 60 MHz
–30 dB (min) @ 100 MHz
7. Hi-Pot
1500 Vrms
8. Operating Temperature Range
–40 °C to +85 °C
