Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE101-0DNLTR-SM
Document: LPJE101-0DNLTR-SM.pdf
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.06-$1.2
Packaging Details: Tape-and-Reel
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 6500K-PCS/Month
Product Type: |
1×1 Shielded RJ45 Connector |
Operating Temperature: |
−40°C To +85°C |
Compatible Brands: |
TE |
Number Of Ports: |
1X1 |
Latch: |
Up |
Performance Category: |
CAT 5e |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THR |
LED Option: |
Without |
EMl Tabs: |
Without |
Metal-Shield: |
Shielded |
Orientation: |
Right Angle(Side Entry) |
Product Type: |
1×1 Shielded RJ45 Connector |
Operating Temperature: |
−40°C To +85°C |
Compatible Brands: |
TE |
Number Of Ports: |
1X1 |
Latch: |
Up |
Performance Category: |
CAT 5e |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THR |
LED Option: |
Without |
EMl Tabs: |
Without |
Metal-Shield: |
Shielded |
Orientation: |
Right Angle(Side Entry) |

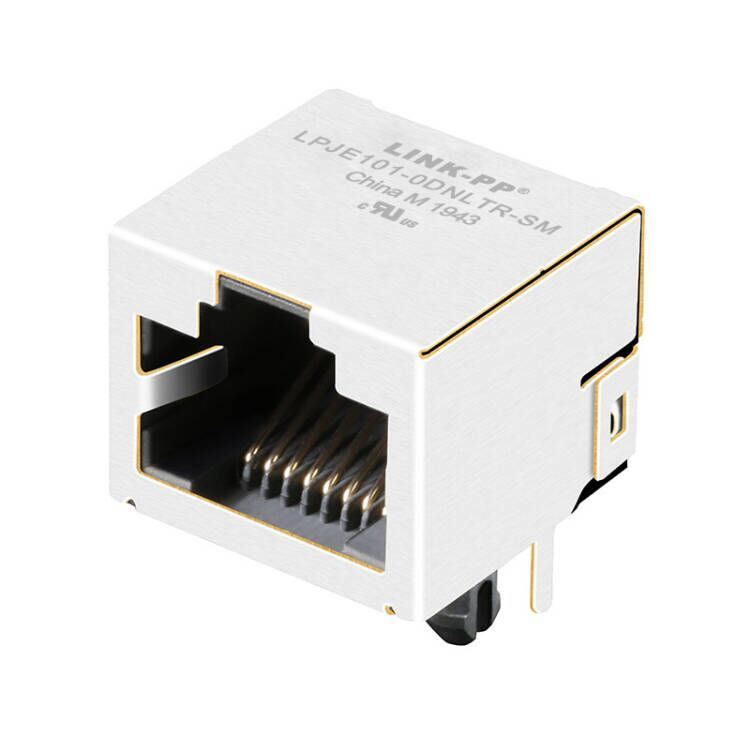

The LINK-PP LPJE101-0DNLTR-SM is a 1×1 shielded industrial-grade RJ45 connector designed for rugged Ethernet applications that require long-term durability, stable electrical performance, and compatibility with automated manufacturing.
Featuring Through-Hole Reflow (THR) technology, it combines SMT process efficiency with superior mechanical retention—ideal for harsh-environment networking devices.
The LPJE101-0DNLTR-SM THR RJ45 connector offers high mechanical strength, reliable signal integrity, and reflow soldering capability for automated SMT production lines. Perfect for industrial Ethernet, automation, robotics, embedded networking, and rugged communication devices.
|
Parameter |
Specification |
|---|---|
| Product Type | 1×1 Shielded RJ45 Connector (THR) |
| Positions / Contacts | 8P8C (RJ45) |
| Performance | Cat5e-class mechanical structure |
| Voltage / Current | 125V AC / 1.5A |
| Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC 1min |
| Contact Material | Phosphor Bronze, Gold-Flash plating |
| Shielding | Nickel-plated copper alloy |
| Operating Temperature | −40°C to +85°C |
| Soldering Process | IR reflow 250°C / 5s |
| Durability | ≥750 plug cycles |
| Mounting | Through-Hole Reflow (THR) |
|
Packaging |
Details |
|---|---|
| Tape & Reel | 200 pcs / reel |
| Carton | 2000 pcs / carton |
| Carton Size | 395 × 395 × 385 mm |
| Weight | ~13 kg/carton |
THR RJ45 connectors combine the mechanical robustness of through-hole pins with the high-speed automated reflow soldering process used for SMT manufacturing.
This makes the LPJE101-0DNLTR-SM an excellent choice for rugged embedded networking hardware.
