Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: IEEE 802.3, UL Recognized, RoHS Compliant, REACH Compliant, ISO 9001 / 14001 Certified
Model Number: LPJ4014CNL
Document: LPJ4014CNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: $0.65
Packaging Details: Tray
Delivery Time: Within 2-3 days
Gender: |
Female Magjack |
Series: |
LINK-PP RJ45 Connectors |
Compatible Brands: |
Wurth |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
Without |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
Gender: |
Female Magjack |
Series: |
LINK-PP RJ45 Connectors |
Compatible Brands: |
Wurth |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
Without |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

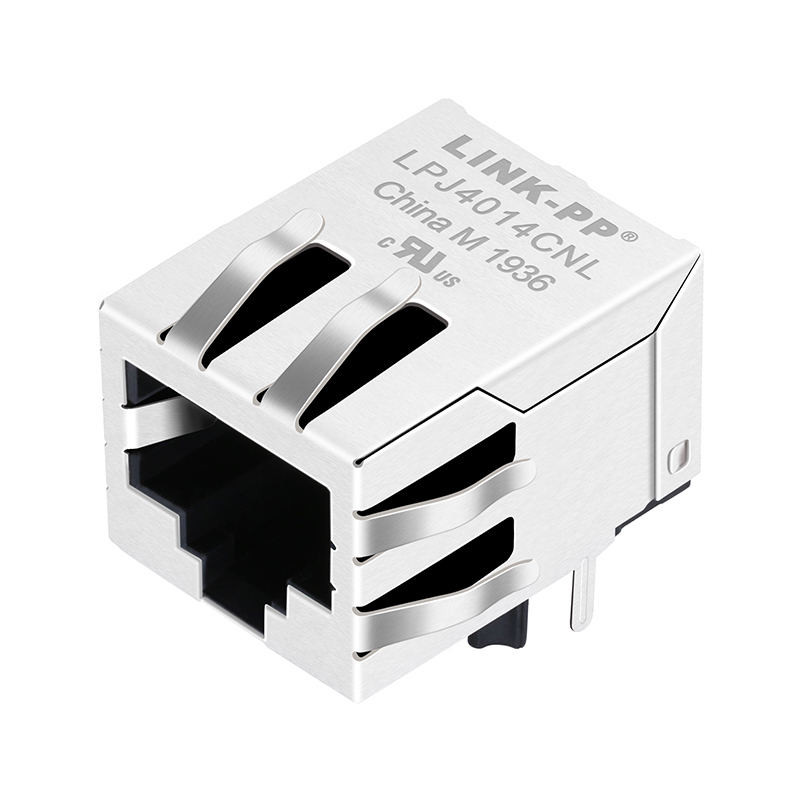

The LPJ4014CNL is a single-port RJ45 connector with integrated magnetics, designed and manufactured by LINK-PP for reliable 10/100 Base-T Ethernet connectivity.
This compact Magjack module integrates the magnetic transformer and RJ45 interface into one component, reducing PCB space, improving EMI performance, and simplifying circuit design for networking and industrial applications.
Built to meet IEEE 802.3 standards, the LPJ4014CNL supports 10/100 Mbps data transmission and offers excellent signal integrity even in electrically noisy environments.
With a wide operating temperature range (-40 °C to +85°C) and shielded housing, it is ideal for IoT devices, industrial controllers, and embedded systems requiring stable Ethernet performance.
| Parameter | Specification |
|---|---|
| Part Number | LPJ4014CNL |
| Type | Integrated RJ45 Connector (Magjack) |
| Port Configuration | 1×1 |
| Speed | 10/100 Base-T |
| Mounting Type | Through Hole |
| Orientation | Tab Down |
| Shield | Metal Shielded |
| LED | No LED |
| Operating Temperature | -40°C ~ +85°C |
| Contact Plating | Gold Flash (6 µin / 15 µin / 30 µin options) |
| Insulator Material | UL 94V-0 Thermoplastic |
| Compliance | IEEE 802.3, UL, RoHS, REACH |
