Product Details
Place of Origin: Made In China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 2-2301994-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $3.7-$18
Packaging Details: Tray
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
2-2301994-4 |
Series: |
1×1 Integrated RJ45 Jack |
Number Of Panel Ground Tabs: |
6 |
Number Of PCB Ground Tabs: |
2 |
Number Of Positions: |
8 |
Number Of Loaded Positions: |
8 |
PCB Mount Orientation: |
Right Angle |
Data Rate: |
1Gb/s |
Operating Temperature Range: |
-40°C To +85°C |
LED Indicators: |
Green / Yellow |
PN: |
2-2301994-4 |
Series: |
1×1 Integrated RJ45 Jack |
Number Of Panel Ground Tabs: |
6 |
Number Of PCB Ground Tabs: |
2 |
Number Of Positions: |
8 |
Number Of Loaded Positions: |
8 |
PCB Mount Orientation: |
Right Angle |
Data Rate: |
1Gb/s |
Operating Temperature Range: |
-40°C To +85°C |
LED Indicators: |
Green / Yellow |

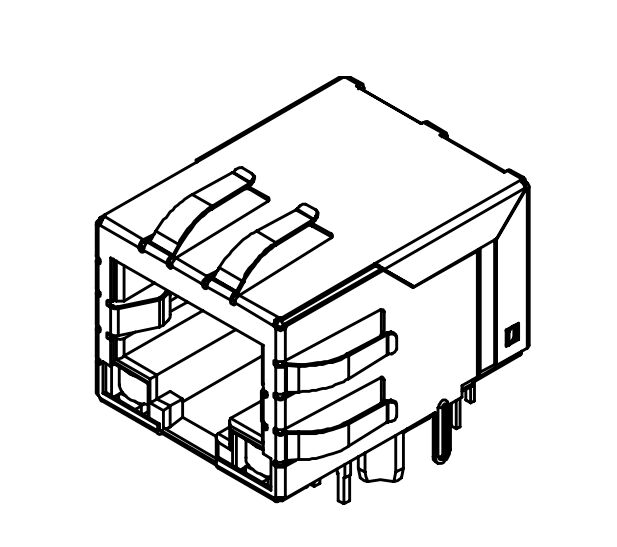

TE 2-2301994-4 is a single-port, shielded RJ45 MagJack connector without LED, supporting Gigabit Ethernet (10/100/1000Base-T) with Auto-MDIX.
The right-angle, through-hole design makes it ideal for board-edge or compact PCB layouts, while the integrated magnetics and EMI-shielded metal shell ensure stable signal integrity and reliable performance in industrial environments.
With gold-plated contacts, a UL-rated LCP housing, and a wide operating temperature range (-40 °C to +85 °C), this connector is an excellent choice for industrial switches, routers, embedded systems, and other Ethernet-enabled devices requiring long-term reliability and EMI robustness.
