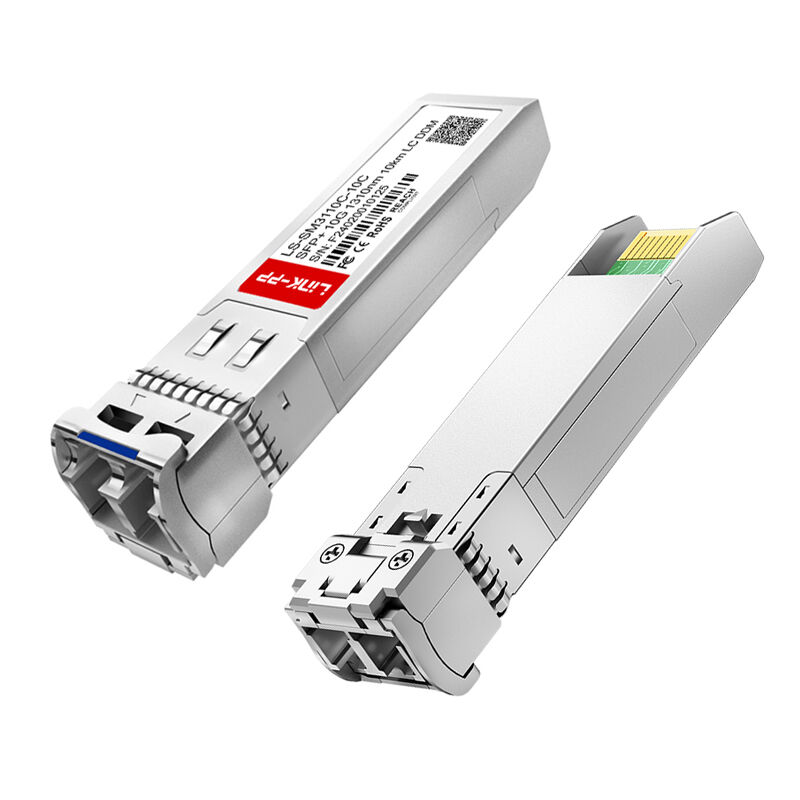

Avaya AA1403011-E6 SFP+ 10GBASE-LR Up To 10km Over SMF

The AA1403011-E6 is a 10 Gigabit Small Form-Factor Pluggable Plus (SFP+) transceiver module designed for high-speed data transmission. It is engineered to support 10GBASE-LR Ethernet links up to 10 kilometers over Single-Mode Fiber (SMF). This module is fully compliant with the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae standards.

Key Specifications of 10GBASE-LR AA1403011-E6:

AA1403011-E6 Compatibility:

The AA1403011-E6 is an OEM (Original Equipment Manufacturer) coded 10GBASE-LR SFP+ transceiver module, supporting 10 Gbps data transmission up to 10 km over Single-Mode Fiber (SMF).

1. Technical Specifications for Compatibility Check

If you are using a third-party switch or a model not listed above, the AA1403011-E6 will work if the device supports the following standard IEEE 802.3ae specifications:

• Port Speed: 10 Gigabit (10GbE)
• Port Type: SFP+ Slot
• Standard: 10GBASE-LR (Long Reach)
• Wavelength: 1310 nm
• Cable: Single-Mode Fiber (SMF)
• Distance: Up to 10 km

2. Compatible Switches Recommendation

• For ERS 4900/5900 or VSP 7000/8000: Stick to AA1403011-E6 for guaranteed native support.
• For Extreme X465/X590/5520: You can use AA1403011-E6 or the newer Extreme 10302. Both are supported.
• For other brands (Cisco, Juniper, etc.): This module physically fits, but you may need to use command-line overrides (e.g., service unsupported-transceiver) as it is coded with Avaya vendor ID information.

Note: On newer Extreme switches, if the module is not immediately recognized, ensuring your switch is running EXOS 22.5+ or VOSS 8.0+ typically resolves the issue, as these firmware versions contain the updated transceiver coding libraries that merge Avaya and Extreme part numbers

Environmental Conditions of AA1403011-E6 SFP+ Module:

• Operating Temperature:
  • 0°C to 70°C (32°F to 158°F)
• Storage Temperature:
  • -40°C to 85°C (-40°F to 185°F)
• Operating Humidity:
  • 0% to 95% (Non-condensing)
