Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: IEEE 802.3, UL Recognized, RoHS Compliant
Model Number: LPJ4284CNL
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: $0.55
Packaging Details: Tray
Delivery Time: Within 2-3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Gender: |
Female Magjack |
Series: |
PoE RJ45 Connectors |
Specification: |
IEEE802.3af |
Applications: |
SOHO, LOM, Hub And Switche |
Housing Materials: |
Thermoplastic PBT + 30% G.F |
Contact Materials: |
Phosphor Bronze |
Pins Materials: |
Brass C2680R-H |
Shield Materials: |
SUS 201-1/2H |
Contact Plating: |
Gold |
Wave Solder: |
265°C Max, 5 Sec. |
Compatible Brands: |
Amphenol |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
PoE |
LED Option: |
Without |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
Gender: |
Female Magjack |
Series: |
PoE RJ45 Connectors |
Specification: |
IEEE802.3af |
Applications: |
SOHO, LOM, Hub And Switche |
Housing Materials: |
Thermoplastic PBT + 30% G.F |
Contact Materials: |
Phosphor Bronze |
Pins Materials: |
Brass C2680R-H |
Shield Materials: |
SUS 201-1/2H |
Contact Plating: |
Gold |
Wave Solder: |
265°C Max, 5 Sec. |
Compatible Brands: |
Amphenol |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
PoE |
LED Option: |
Without |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

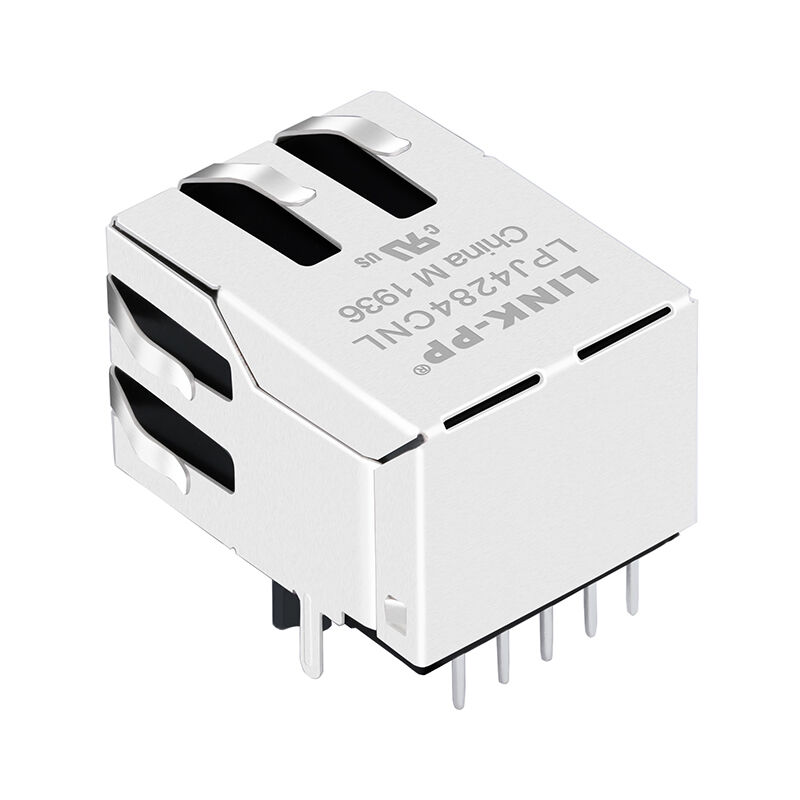

The LPJ4284CNL is a high-quality, single-port RJ45 MagJack connector with integrated magnetics designed for 10/100Base-T Ethernet and Power over Ethernet (PoE) applications. It features a robust through-hole side-entry design, shielded housing with EMI tabs, and complies with global standards for reliable network performance.
High-quality LPJ4284CNL RJ45 MagJack Ethernet connector with integrated magnetics and IEEE 802.3af PoE support. Supports 10/100Base-T, side-entry THT mounting, and industrial temperature range — ideal for network equipment and industrial applications.
| Parameter | Specification |
|---|---|
| Part Number | LPJ4284CNL |
| Connector Type | RJ45 8P8C Ethernet MagJack |
| Number of Ports | 1×1 |
| Transmission Speed | 10/100Base-T |
| Integrated Magnetics | Yes |
| PoE Compliance | IEEE 802.3af |
| Mounting Method | Through Hole (THT) |
| Orientation | Side Entry, Tab-Down |
| Shielding | With EMI Tabs |
| LED | None |
| PCB Retention | T-Post |
| Contact Plating | Gold 6μ″ / 15μ″ / 30μ″ |
| Operating Temp | –40°C to +85°C |
| Certifications | UL, RoHS, REACH, ISO19001, ISO14001 |
| Item | Specification |
|---|---|
| Height | ~13.30 mm |
| Length | ~21.25 mm |
| Width | ~15.93 mm |
| Net Weight | ~0.007 kg / pc |
| Packaging | 50 pcs / Tray; 1200 pcs / Carton |
| Carton Size | 32 × 30 × 31 cm |
| Gross Weight | ~8.5 kg / Carton |
Each LPJ4284CNL connector undergoes rigorous quality assurance and testing, including electrical performance verification, signal integrity assessment, PoE current and thermal performance validation, mechanical durability testing, and environmental reliability evaluations.
This RJ45 MagJack delivers high-performance network connectivity and robust operational reliability. It features integrated magnetics to support signal integrity and noise suppression, and its industrial-rated temperature tolerance makes it suitable for a wide range of environments. Compliance with major global safety and environmental standards ensures deployment confidence in commercial and industrial applications.
