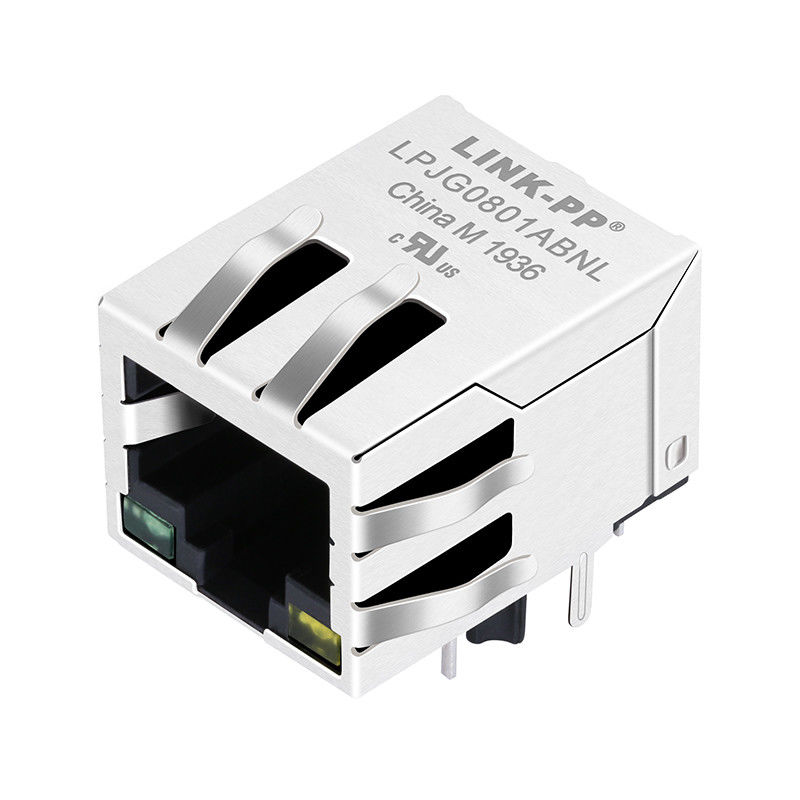

The KLA1T109-43LF is a single-port 1000BASE-T RJ45 MagJack (Integrated Magnetics Connector, IMC) designed for Gigabit Ethernet networking equipment. This 1×1 right-angle RJ45 connector integrates Ethernet isolation transformers, common-mode filtering, impedance matching resistors, and a high-voltage capacitor into a compact package, significantly reducing PCB space while improving EMI performance.
Compliant with IEEE 802.3ab and FCC requirements, the KLA1T109-43LF supports 1000BASE-T transmission over Category 5 UTP cable and features dual integrated LEDs for link and activity indication. With 1500Vrms isolation, 350μH minimum OCL, and 750 mating cycles, it is an ideal solution for enterprise networking, industrial Ethernet, IP communication devices, and embedded networking systems.
| Parameter | Specification |
|---|---|
| Part Number | KLA1T109-43LF |
| Product Type | Integrated Magnetics RJ45 Connector (MagJack) |
| Configuration | 1 × 1 Single Port |
| Ethernet Standard | IEEE 802.3ab |
| Data Rate | 1000BASE-T Gigabit Ethernet |
| Mounting Type | Right Angle Through Hole |
| Shielding | Shielded |
| Magnetics | Integrated |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Compliance | RoHS, IEEE 802.3ab, FCC |
| Parameter | Specification |
|---|---|
| Turns Ratio (±5%) | TX: 1CT:1CT / RX: 1CT:1CT |
| Open Circuit Inductance (OCL) | 350 μH Min. (@ 100 kHz, 0.1 V, 8 mA DC Bias) |
| Isolation Voltage (HI-POT) | 1500 Vrms (@ 60 Hz, Input to Output) |
| Insertion Loss (Max.) | ≤ 1.0 dB (1–100 MHz) |
| Cross Talk (Min.) |
≥ 40 dB (0.3–30 MHz) ≥ 35 dB (30–60 MHz) ≥ 30 dB (60–100 MHz) |
| Return Loss (Min. @ 100 Ω Load) |
≥ 16 dB (1–30 MHz) ≥ 13.5 dB (30–40 MHz) ≥ 11.5 dB (40–50 MHz) ≥ 10 dB (50–80 MHz) |
| Common Mode Rejection (CMR) |
≥ 30 dB (1–30 MHz) ≥ 25 dB (30–60 MHz) ≥ 20 dB (60–125 MHz) |
| Feature | Material / Specification |
|---|---|
| Housing Material | Thermoplastic, UL 94V-0, Black |
| Metal Shield | Brass with 20 μin Nickel Plating |
| Contact / Spring Wire | Phosphor Bronze with Selective Gold Plating |
| Solder Pins | SUS430, Solder Plated, 0.50 × 0.35 mm |
| Mating Durability | Minimum 750 Mating Cycles |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Category | Parameter | Dimension |
|---|---|---|
| Overall Dimensions | Width | 16.00 mm [0.630 in] |
| Height (Housing)* | 13.60 mm [0.536 in] | |
| Depth (Length) | 21.30 mm [0.839 in] | |
| Pins & Locating Posts | Rear Signal Pin Length | 3.20 mm [0.126 in] |
| Plastic Locating Post Height | 3.20 mm [0.126 in] | |
| Front LED Pin Size (Thickness × Width) | 0.50 × 0.60 mm [0.020 × 0.024 in] (4 Pins) | |
| Rear Signal Pin Thickness | 0.35 mm [0.014 in] (8 Pins) | |
| Front View (LED Layout) | LED Configuration | Left: Green LED / Right: Yellow LED |
| Left (Green) LED Pin Pitch | 3.10 mm [0.122 in] | |
| Right (Yellow) LED Pin Pitch | 3.00 mm [0.118 in] | |
| Far-Left LED Pin to Connector Edge | 3.10 mm [0.122 in] | |
| Outer LED Pins Center Span | 11.43 mm [0.450 in] | |
| Side View Spacing | Front LED Pin to Front Shield Tab | 6.35 mm [0.250 in] |
| Front LED Pin to Plastic Post Center | 8.89 mm [0.350 in] | |
| Plastic Post Center to 1st Signal Pin Row | 3.15 mm [0.124 in] | |
| 1st Signal Pin Row to 2nd Signal Pin Row | 1.20 mm [0.047 in] | |
| Bottom View / PCB Footprint | Front Shield Tabs Span | 11.43 mm [0.450 in] |
| Bottom Plastic Locating Posts Span | 11.43 mm [0.450 in] | |
| Rear Signal Pin Pitch (Adjacent Pins) | 1.27 mm [0.050 in] | |
| Front Face to Rear Shield Tab Center | 10.70 mm [0.422 in] | |
| Plastic Post Center to Rear Shield Tab Center | 5.08 mm [0.200 in] | |
| Front Shield Tab Center to Plastic Post Center | 3.38 mm [0.133 in] |
The KLA1T109-43LF is designed with a standardized PCB footprint that supports automated through-hole assembly.
Key design advantages include:
The standardized footprint helps reduce redesign effort when replacing compatible Gigabit RJ45 MagJack connectors.
The KLA1T109-43LF is a single-port Gigabit RJ45 connector with integrated magnetics, designed for IEEE 802.3ab 1000BASE-T Ethernet applications.
Yes. It integrates Ethernet isolation transformers, impedance matching resistors, and a high-voltage capacitor into the RJ45 connector housing.
The connector supports 1000BASE-T Gigabit Ethernet transmission over Category 5 UTP cable.
The integrated magnetics provide 1500Vrms isolation between the Ethernet PHY and the network cable.
Yes. The connector includes one Green LED and one Yellow LED, commonly used for Link, Speed, or Activity indication.
Yes. The KLA1T109-43LF complies with RoHS environmental requirements.
Yes. LINK-PP offers compatible LPJG0801ABNL Gigabit RJ45 MagJack solutions with equivalent electrical performance, PCB compatibility, and long-term manufacturing support.
