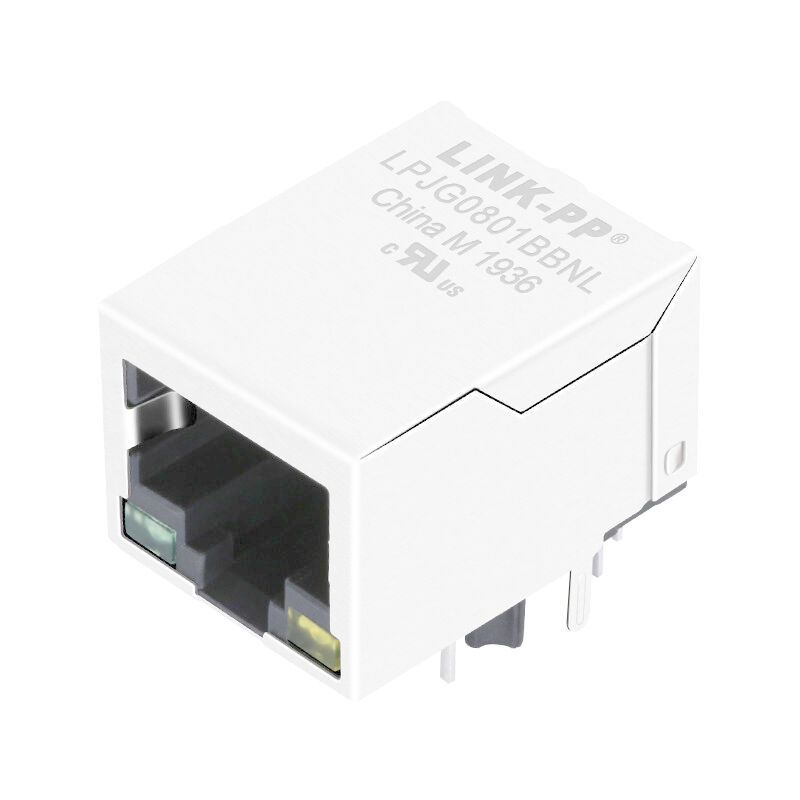

LA1S09-43LF | LPJG0801BBNL 1000Base Magnetic RJ45 Jack

Name: LA1S09-43LF | LPJG0801BBNL 1000Base Magnetic RJ45 Jack
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LA1S09-43LF
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LA1S09-43LF

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, rj45 with magnetics


Specifications:	LA1S09-43LF	P.N:	LPJG0801BBNL
Application:	10/100/1000Base-T	Termination:	Solder
LEDs:	Optional	Type:	DIP / Side Entry

Specifications:	LA1S09-43LF
P.N:	LPJG0801BBNL
Application:	10/100/1000Base-T
Termination:	Solder
LEDs:	Optional
Type:	DIP / Side Entry

LA1S09-43LF | LPJG0801BBNL 1000Base Magnetic RJ45 Jack

LA1S09-43LF | LPJG0801BBNL 1000Base Magnetic RJ45 Jack

1.10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications

2.1X1, INT. MAG., LED, REVERSE LATCH

3.LA1S09-43LF

4.LPJG0801BBNL

LED optional, EMI-finger Optional.

Description

1X1-Tab-Down RJ45 Magjack with/without leds, meeting IEEE 802.3ab

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
