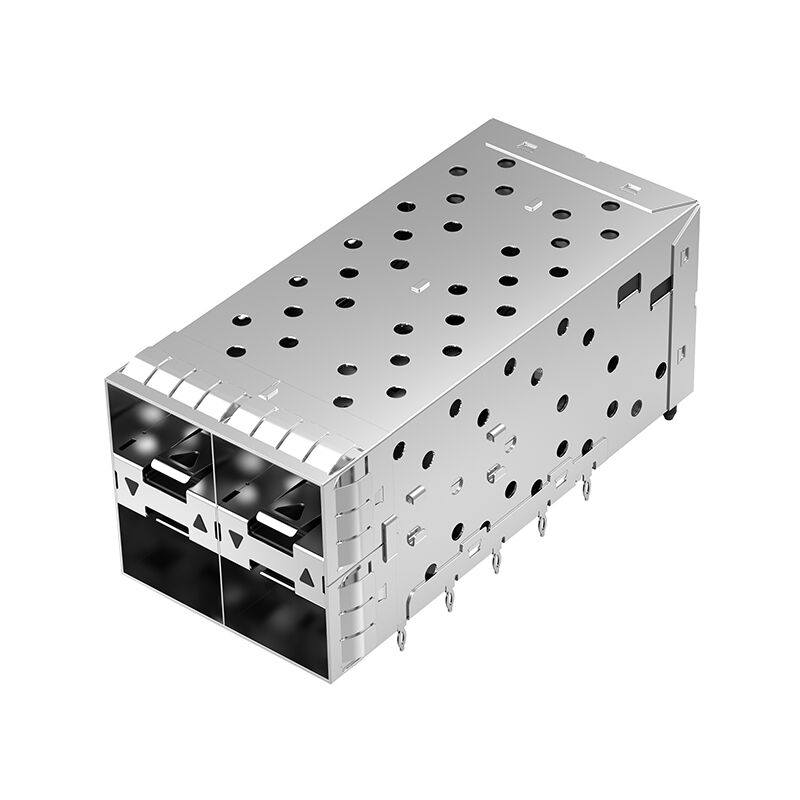

LP22BC01301 SFP+ 2x2 Cage Connector with Outer LightPipe


LINK-PP LP22BC01301 SFP+ 2x2 Cage Connector with outer lightpipe. Press-fit, right-angle, 4-port, -40 to 85°C, tray packaging. Ideal for data center & networking.


• High-speed signal integrity ensured via nickel-plated copper cage and gold-plated contacts
• LED status visibility supported by inner/outer lightpipe
• Press-fit right-angle mounting simplifies PCB assembly and reduces rework
• Tray packaging ensures safe handling during mass production
• Supports reliable operation in wide industrial temperature range (-40 to 85°C)

LP22BC01301 SFP+ 2x2 Cage Connector Description:

The LP22BC01301 SFP+ 2x2 Cage Connector by LINK-PP is a high-quality, pluggable I/O connector designed for high-speed networking equipment, enterprise switches, and data center applications. With a 2x2 port matrix and outer lightpipe integration, this cage ensures robust signal integrity, reliable EMI containment, and secure SFP+ module mating.

Engineered for PCB designers, network engineers, and OEM procurement teams, it offers press-fit through-hole mounting, compliance with high-temperature requirements, and tray packaging for easy assembly.

Key Features

1. Pluggable I/O Type: Cage assembly with integrated SFP+ connector

2. Port Configuration: 2x2 matrix, 4 ports

3. Positions: Standard SFP+ 80 positions

4. Lightpipe: Outer and inner lightpipe included for LED indicators

5. EMI Containment: Cage design provides EMI shielding

6. Sealable: Not specified (typical SFP+ cage assembly protection)

7. Data Rate: Supports SFP+ speeds up to 10–16 Gb/s

8. Operating Temperature: -40 – 85°C

9. PCB Mounting: Through-hole, press-fit, right-angle

10. Housing Material: High-temperature LCP, UL94 V-0

11. Cage Material: Copper alloy, Ni-plated, 0.25 mm thickness

12. Contacts: Phosphor bronze, 0.20 mm thickness, 15 µm gold plating on mating area

13. Spring: Stainless steel, 0.20 mm thickness

14. Dimensions:

• Height: 25.53 mm / 1.005 in
• Length: 63.25 mm / 2.490 in
• Width: 29.00 mm / 1.142 in

Material & Electrical Specifications

LP22BC01301 Datasheet- RECOMMENDED PCB LAYOUT​

Mechanical & Configuration Details of LP22BC01301 2x2 SFP+ Cage

• Cage Type: 2x2 stacked SFP+
• Form Factor: SFP+ standard
• Lightpipe Style: Inner & outer, clear polycarbonate
• Mounting Type: Right-angle, through-hole
• Cage Material: Copper alloy, nickel-plated
• PCB Thickness Recommended: 1.5 mm
• Heat Sink Compatible: Not specified

SFP+ Cage Assembly Applications

• 10G SFP+ Transceivers
• Enterprise and Carrier Ethernet Switches
• Servers and Storage Equipment
• High-speed Data Communication Networks

FAQs About LP22BC01301 SFP+ Cage Connector

Q1: Can this cage assembly support SFP28 25Gb/s modules?

A: This model is optimized for SFP+ speeds up to 16 Gb/s. Compatibility with SFP28 requires verification.

Q2: Is the lightpipe compatible with standard SFP+ LEDs?

A: Yes, the included inner and outer lightpipe supports standard LED indicators.

Q3: What is the operating temperature range?

A: The cage supports -40°C to 85°C.

Q4: Is tray packaging available for mass production?

A: Yes, LP22BC01301 is supplied in tray packaging suitable for automated assembly.
