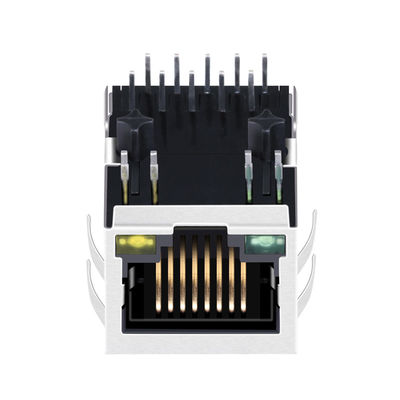

JKM-0001NL RJ45 Modular Jack Matched ATSAM3S1AB-AUR In Layer switch

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JKM-0001NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Specifications:
JKM-0001NL
P.N:
LPJG0820GENL
Application:
10/100/1000Base-T
Termination:
Solder
LEDs:
Optional
Samples:
Available
Specifications:
JKM-0001NL
P.N:
LPJG0820GENL
Application:
10/100/1000Base-T
Termination:
Solder
LEDs:
Optional
Samples:
Available
JKM-0001NL RJ45 Modular Jack Matched ATSAM3S1AB-AUR In Layer switch
JKM-0001NL RJ45 Modular Jack Matched ATSAM3S1AB-AUR In Layer switch

1.10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications
2.1X1, INT. MAG., LED, REVERSE LATCH
3 .JKM-0001NL
4. LPJG0820GENL
LED optional, EMI-finger Optional.

Description

1X1-Tab-Down RJ45 Magjack with/without leds, meeting IEEE 802.3ab
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
