Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 1-6605444-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
1-6605444-1 |
Mass Production: |
LPJG0833GZNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
LEDs: |
Optional |
IC Match: |
ATMEGA8535-16JUR |
Type: |
DIP / Side Entry |
Part Number: |
1-6605444-1 |
Mass Production: |
LPJG0833GZNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
LEDs: |
Optional |
IC Match: |
ATMEGA8535-16JUR |
Type: |
DIP / Side Entry |
Quick Details
1.10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications
2.1X1, INT. MAG., LED, REVERSE LATCH
3 .1-6605444-1【Designing Model】
4. LPJG0833GZNL【 Mass Production Model】
4.LED optional, EMI-finger Optional.
Description

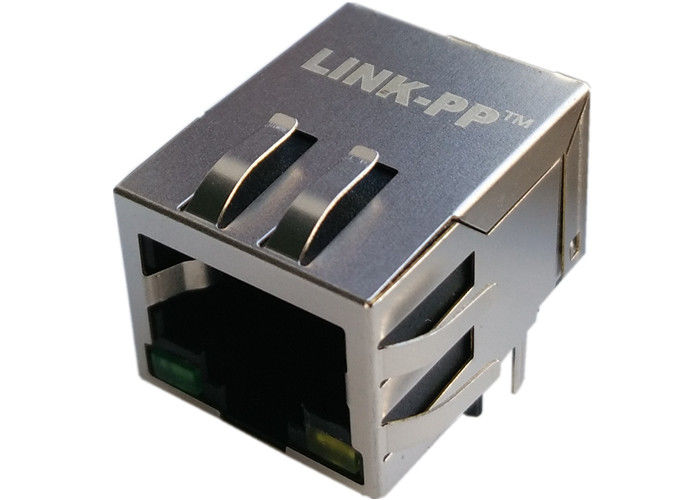

1X1-Tab-Down RJ45 Magjack with/without leds, meeting IEEE 802.3
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%): 1CT∶1
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-35dB MIN @ 1-30MHz
-32dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test:1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃
NOTES:
1.Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
