Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: RoHS-5
Model Number: L869-1J1T-32
Payment & Shipping Terms
Minimum Order Quantity: 60pcs
Price: Negotiable & Discount $0.30 - $0.65
Packaging Details: Tape & Reel, Tube
Delivery Time: 1-3days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 4600K.PCS/Month
Type: |
Low Profile RJ45 Connector |
P/N: |
L869-1J1T-32 |
Number Of Ports: |
Single Port |
Latch: |
Up |
Mounting: |
THT |
Speed: |
1000BASE-T (Gigabit) |
AutomDX: |
Yes |
Integrated Magnetics: |
With |
Type: |
Low Profile RJ45 Connector |
P/N: |
L869-1J1T-32 |
Number Of Ports: |
Single Port |
Latch: |
Up |
Mounting: |
THT |
Speed: |
1000BASE-T (Gigabit) |
AutomDX: |
Yes |
Integrated Magnetics: |
With |

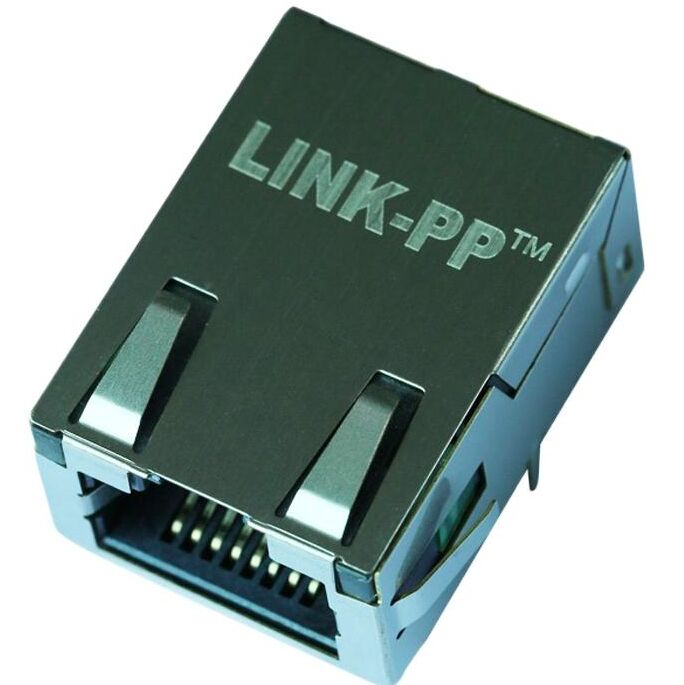

The L869-1J1T-32 is a low-profile, single-port RJ45 magjack designed for Gigabit Ethernet (1000BASE-T) applications. It features side-entry THT mounting, T-post PCB retention, selectable shield EMI tabs, green/yellow LEDs, gold-plated contact options (6µin / 15µin / 30µin), and integrated magnetics with 1CT:1 turns ratios. It supports AutomDX (Auto-MDIX) and includes the Bst circuit option to simplify board integration and link reliability.
| Item | Specification |
|---|---|
| Part number | L869-1J1T-32 |
| Application | 1000BASE-T (Gigabit Ethernet) |
| Number of ports | 1 × 1 |
| Mounting / PCB angle | Side entry, THT solder |
| PCB retaining post | T POST |
| Latch | UP (tab up) |
| Contact plating | GOLD — 6µin / 15µin / 30µin |
| Cores per port | 4 |
| Diodes | No diodes |
| LED option | Green / Yellow |
| Shield EMI tabs | With or without |
| Pin type | THT solder |
| Configuration RX / TX | T, C |
| Turns ratio (RX / TX) | 1CT : 1 |
| Speed | 1000BASE-T |
| Temperature | Operating: 0 to 70 °C; Storage (listed): -40 to 85 °C. |
| RoHS | YES — RoHS-5 with lead in solder exemption |
| Special circuitry | AutomDX (Auto-MDIX): YES; Bst Circuit: YES. |
L869-1J1T-32 1000BASE-T single-port low-profile RJ45 magjack with AutomDX, gold plating options (6/15/30µin), side-entry THT mount. Datasheet & ordering.
A: AutomDX is the part label used here for Auto-MDIX functionality — the jack and magnetics support automatic crossover detection allowing straight or crossover cables to be used without manual cabling changes.
A: The product data you provided does not list PoE support explicitly. If PoE is required, check the datasheet or confirm with the supplier which variants (if any) support PoE.
A: Datasheet entries list 0 to 70 °C as the primary operating range and -40 to 85 °C as a storage/extended range in listings — confirm the intended use case and check the specific variant’s datasheet for guaranteed ratings.
