Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: RoHS, IEC 60825
Model Number: L9-FC554901-80PPC
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: 12.98USD/PCS
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Model: |
L9-FC554901-80PPC |
Fiber Type: |
Single-Mode Fiber (9/125 µm) |
Supply Voltage: |
DC 5.5–26 V |
Laser Type: |
DFB (Long-Reach Configuration) |
Distance: |
≤80km |
Form Factor: |
1x9 |
Data Rate: |
100M/155M |
Wavelength: |
1550nm Tx/ 1490nm Rx |
Model: |
L9-FC554901-80PPC |
Fiber Type: |
Single-Mode Fiber (9/125 µm) |
Supply Voltage: |
DC 5.5–26 V |
Laser Type: |
DFB (Long-Reach Configuration) |
Distance: |
≤80km |
Form Factor: |
1x9 |
Data Rate: |
100M/155M |
Wavelength: |
1550nm Tx/ 1490nm Rx |

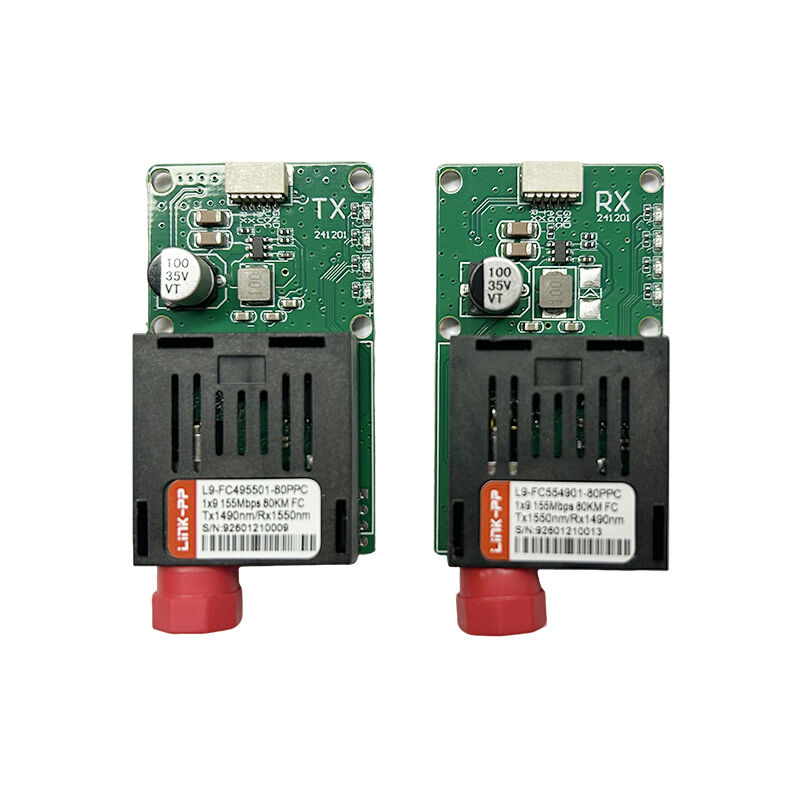

L9-FC554901-80PPC is a long-reach 1×9 form-factor optical transceiver designed for 155 Mbps single-fiber bi-directional optical transmission. The module operates at Tx 1550 nm / Rx 1490 nm, supports transmission distances of up to 80 km, and uses an FC optical connector for reliable long-distance single-mode fiber links.
With a wide DC input voltage range of 5.5-26 V and a TTL electrical interface, this transceiver is optimized for air-to-ground UAV optical links, FPV systems, single-fiber video converters, and serial data transmission over fiber.
|
Category |
Parameter |
Specification |
|---|---|---|
|
General |
Part Number |
L9-FC554901-80PPC |
|
Vendor |
LINK-PP |
|
|
Form Factor |
1×9 Optical Transceiver |
|
|
Application Type |
TTL to Fiber Optical Transmission |
|
|
Max Data Rate |
155 Mbps (STM-1 / OC-3 Class) |
|
|
Fiber Type |
Single-Mode Fiber (SMF, 9/125 µm) |
|
|
Optical |
Transmitter Wavelength |
1550 nm |
|
Receiver Wavelength |
1490 nm |
|
|
Electrical |
Supply Voltage |
DC 5.5 V - 26 V |
|
Signal Interface |
TTL |
|
|
Power Consumption |
Refer to Official Datasheet |
|
|
Environmental |
Operating Temperature |
0 °C to +70 °C (Standard) |
|
Storage Temperature |
-40 °C to +85 °C |
|
|
Compliance |
RoHS |
Compliant |
|
Laser Safety |
IEC 60825 Compliant |
It is used for long-distance 155 Mbps TTL-to-fiber optical transmission, especially in UAV air-to-ground links, FPV systems, and industrial serial communication.
Yes. The wide DC 5.5-26 V input makes it suitable for UAV, vehicle, and ground station power supplies.
Yes. It is commonly used in single-fiber video and serial data fiber converter systems.
It uses an FC optical connector and single-mode fiber (9/125 µm).
