Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: RoHS, IEC 60825
Model Number: L9-FC554901-80PPC
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: 12.98USD/PCS
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Model: |
L9-FC554901-80PPC |
Fiber Type: |
Single-Mode Fiber (9/125 µm) |
Supply Voltage: |
DC 5.5–26 V |
Distance: |
≤80km |
Form Factor: |
1x9 |
Data Rate: |
100M/155M |
Wavelength: |
1490nm Tx / 1550nmRx |
Model: |
L9-FC554901-80PPC |
Fiber Type: |
Single-Mode Fiber (9/125 µm) |
Supply Voltage: |
DC 5.5–26 V |
Distance: |
≤80km |
Form Factor: |
1x9 |
Data Rate: |
100M/155M |
Wavelength: |
1490nm Tx / 1550nmRx |

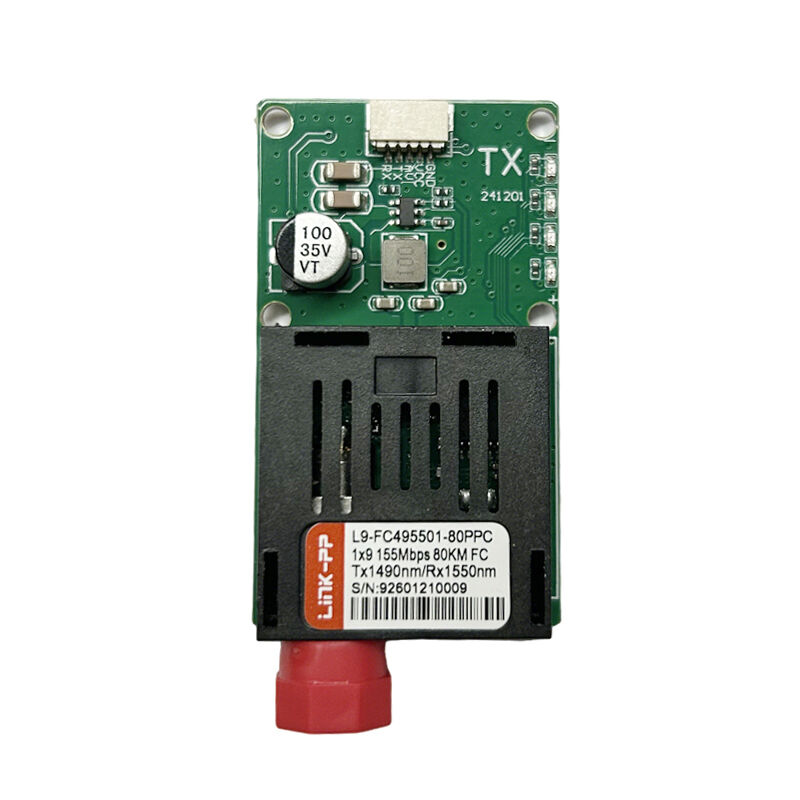

L9-FC495501-80PPC is the complementary BiDi (B-side) transceiver to L9-FC554901-80PPC, designed for single-fiber, long-reach 155 Mbps optical links up to 80 km.
This module operates at Tx 1490 nm / Rx 1550 nm and is typically deployed at the remote or ground-side node, forming a matched BiDi optical pair with the Tx1550nm / Rx1490nm (A-side) module.
| Parameter | Specification |
|---|---|
| Part Number | L9-FC495501-80PPC |
| Form Factor | 1×9 Optical Transceiver |
| Max Data Rate | 155 Mbps |
| Fiber Type | Single-Mode Fiber (SMF, 9/125 µm) |
| Max Distance | 80 km |
| Optical Connector | FC |
| Electrical Interface | TTL |
| Supply Voltage | DC 5.5 – 26 V |
⚠️ This module must be paired with a Tx1550nm / Rx1490nm BiDi transceiver on the opposite end of the fiber link.
1. Compliance: RoHS
2. Laser Safety: IEC 60825
3. Operating Temperature:
The L9-FC495501-80PPC is designed for long-distance UAV air-to-ground optical communication, supporting single-fiber Bi-Directional (BiDi) transmission up to 80 km over single-mode fiber.
Operating at Tx 1490 nm / Rx 1550 nm, this 1×9 optical transceiver enables stable, low-latency data links for UAV telemetry, FPV video return channels, and serial control signals.
The wide DC 5.5–26 V input range and TTL electrical interface allow direct integration with UAV flight controllers, ground stations, and optical data link systems.
