Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: EU RoHS and REACH Compliance
Model Number: SFPC-PF
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $0.8
Packaging Details: Tape and Reel
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: Western Union,T/T,D/P,D/A
Supply Ability: 5kk per Mouth
Part Number: |
SFPC‑PF |
Connector Type: |
SFP+ Cage (10GbE) |
Mounting Type: |
Right-Angle PCB Mount, Press-Fit |
Cage Material: |
Metal, EMI Shielded |
Port Count: |
1 Port |
Operating Temperature: |
-40°C To +85°C |
Part Number: |
SFPC‑PF |
Connector Type: |
SFP+ Cage (10GbE) |
Mounting Type: |
Right-Angle PCB Mount, Press-Fit |
Cage Material: |
Metal, EMI Shielded |
Port Count: |
1 Port |
Operating Temperature: |
-40°C To +85°C |

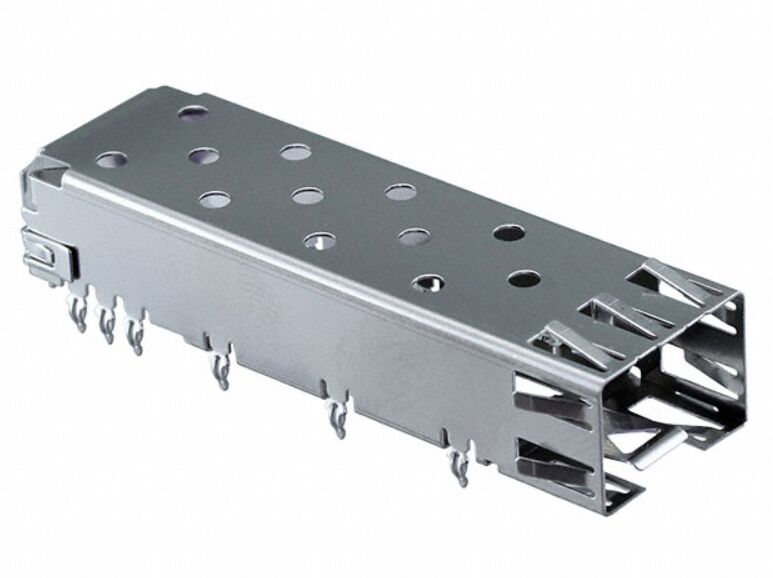

The SFPC-PF SFP+ Cage is a robust, high-speed SFP+ connector designed for 10GbE and high-frequency networking applications. Engineered for seamless PCB integration, it ensures reliable signal integrity and mechanical stability. Compatible with industry-standard SFP+ transceivers, this cage is ideal for enterprise networking, data centers, and telecommunication equipment.
The SFPC-PF SFP+ Cage provides engineers with a reliable, high-performance solution for 10GbE networking, combining industry-standard compliance, robust EMI shielding, and SMT-friendly design for rapid PCB assembly.
| Parameter | Specification |
|---|---|
| Part Number / Series | SFPC‑PF (SFP+ Cage, Press‑Fit) |
| Connector Type | SFP+ Cage Assembly (for MECT / SFPE transceivers) |
| No. of Ports | 1‑port (standard) |
| Termination Style | Press‑Fit (PF) to PCB; also available in Solder Lead (SL) / PCI Press‑Fit (PC) options |
| Mounting Orientation | Right‑angle PCB mount (Press‑Fit) |
| Usage | SFP+ 10Gb/s hot‑pluggable transceiver cage interface |
| Cage Material | Metal shielded cage (typically nickel/steel alloy) |
| EMI Shielding | Full metal EMI shielding, compliant with industry SFP+ form‑factor |
| Standard Compliance | SFP+ SFF MSA form‑factor compliant (10GbE, high‑speed I/O) |
| Panel/Kit Options | Available with panel mount kit (SFPK series) options in 2‑port or 4‑port |
| Typical Cage Dimensions | ~48.73 mm (length) × ~14.0 mm (width) × ~8.95 mm (height) (based on SFPC series generic data) |
| PCB Footprint | Designed for standard SFP/SFP+ host board footprint (Pin‑compatible with MECT socket) |
| Operating Temperature | Typical industrial range (often –40°C to +85°C depending on design) Confirmed per SFP+ industry norm |
| RoHS Compliance | RoHS compliant according to supplier listings |
A1: It is a right-angle PCB mount with press-fit termination, enabling secure mechanical retention without soldering.
A2: SFPC‑PF supports 10GbE SFP+ transceivers, providing reliable high-speed connectivity.
A3: Yes, the cage is fully metal shielded, protecting against EMI/RFI and maintaining signal integrity.
A4: Yes, it is SFP+ MSA form-factor compliant, supporting both optical and electrical SFP+ modules.
A5: The standard operating range is -40°C to +85°C, suitable for industrial and data center environments.
A6: It is designed as a single-port cage. Multi-port options are available in the SFPC/SFPK family.
A7: Yes, the press-fit design allows for automated insertion into PCBs without soldering, ideal for high-volume production.
A8: Yes, SFPC‑PF can be combined with panel mount kits (SFPK series) for multi-port or chassis-mounted configurations.
