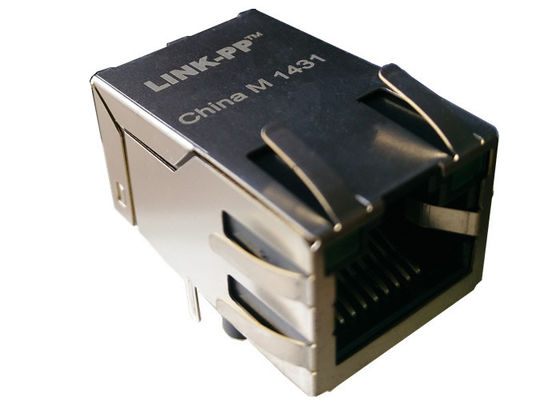

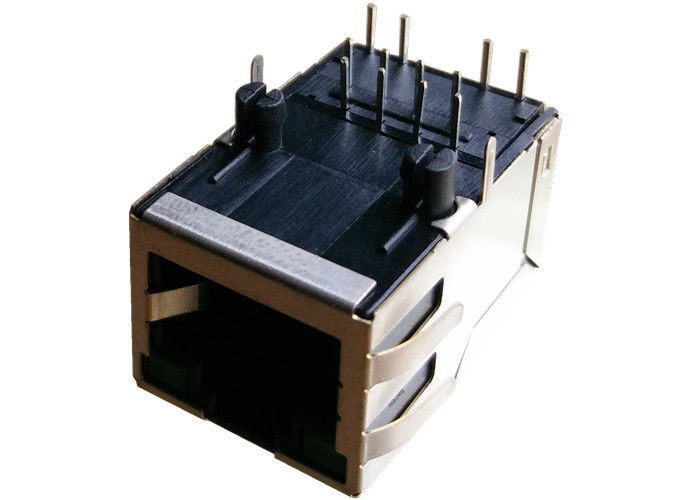

47F-1206YGD2NL Female Ethernet Connector , ATXMEGA64D4-CUR Buit-in Z-Wave

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 47F-1206YGD2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

Part Number:
47F-1206YGD2NL
Mass Production:
LPJ1012AGNL
Original Munafactuer:
LINK-PP
Application:
10/100Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATXMEGA64D4-CUR
Type:
DIP / Side Entry
Part Number:
47F-1206YGD2NL
Mass Production:
LPJ1012AGNL
Original Munafactuer:
LINK-PP
Application:
10/100Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATXMEGA64D4-CUR
Type:
DIP / Side Entry
47F-1206YGD2NL Female Ethernet Connector , ATXMEGA64D4-CUR Buit-in Z-Wave



47F-1206YGD2NL Female Ethernet Connector , ATXMEGA64D4-CUR Buit-in Z-Wave


Quick Details



1.10/100Base-TSIngle Port Rj45 Tab-up Applications

2.1X1, INT. MAG., LED, REVERSE LATCH

3.47F-1206YGD2NL【Designing Model】

4.LPJ1012AGNL【 Mass Production Model】

4.LED optional, EMI-finger Optional.



Description


1X1-Tab-up RJ45 Magjack with/without leds, meeting IEEE 802.3af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
