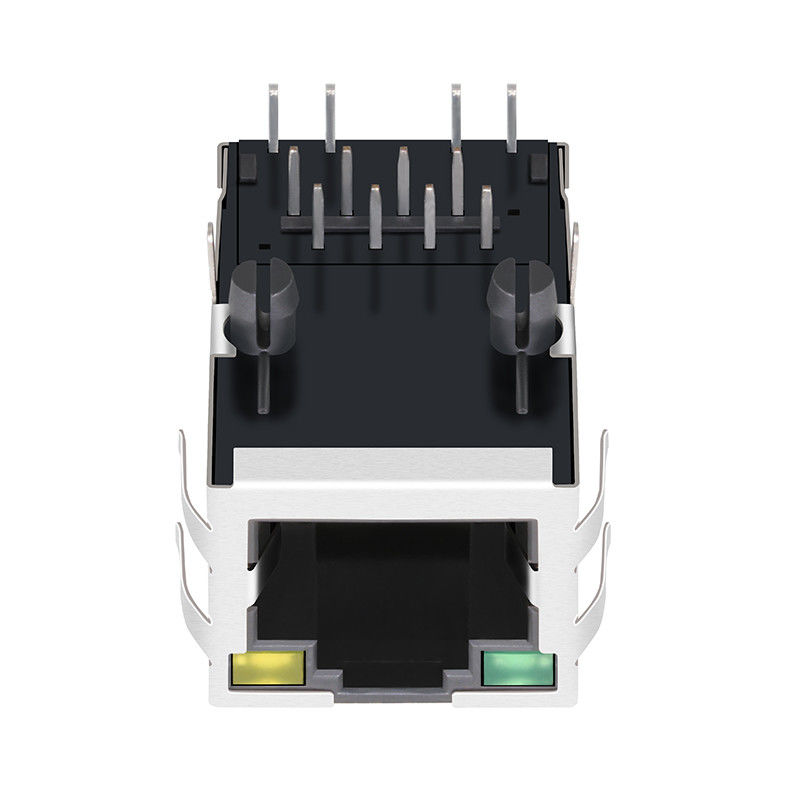

SI-50170-G RJ45 Modular Jack Tab-up ATA6616C-P3QW-1 Embedded IP-PBX

1.10/100Base-T SIngle Port Rj45 Tab-UP Applications

2.1X1, INT. MAG., LED, REVERSE LATCH

3.SI-50170-G

4.SM-LPJ1014AHNL

4.LED optional, EMI-finger Optional.

SI-50170-G Electrical Specification: TEST NOTES(25±5℃)
1.TR:(100KHZ,100mV);
  TX=1CT:1CT ±3%     RX=1CT:1CT ±3%P2.LX:(100KHZ,100mV,8mA,DC Bias)
  PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
  PINS(P1,P2,P3)TO (J1,J2)=1500V
  PINS(P4,P5,P6)TO (J3,J6)=1500V
4.INSERTION LOSS:
  -1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
  -20dB MIN @ 1MHz TO 10MHz
  -16dB MIN @ 10MHz TO 30MHz
  -12dB MIN @ 30MHz TO 60MHz
  -10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
  -40dB MIN @ 1MHz TO 30MHz
  -35dB MIN @ 30MHz TO 60MHz
  -30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
  -30dB MIN @1MHz TO 50MHz
  -20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.
