Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: RoHS, REACH SVHC, Low-Halogen
Model Number: 747548101
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $5.15
Packaging Details: TRAY
Delivery Time: 3-7 days
Payment Terms: Western Union,T/T,D/P,D/A
Supply Ability: 3KK/Month
Part Number: |
747548101 |
Product Type: |
SFP+ Cage Assembly |
Number Of Ports: |
1x1 (Single Port) |
Mounting Type:: |
Through Hole, Right Angle |
EMI Spring Fingers: |
With |
Lightpipe: |
Inner 2 Ports |
Termination: |
Press-Fit |
Part Number: |
747548101 |
Product Type: |
SFP+ Cage Assembly |
Number Of Ports: |
1x1 (Single Port) |
Mounting Type:: |
Through Hole, Right Angle |
EMI Spring Fingers: |
With |
Lightpipe: |
Inner 2 Ports |
Termination: |
Press-Fit |
| Part Number | 747548101 |
|---|---|
| Series | 74754 |

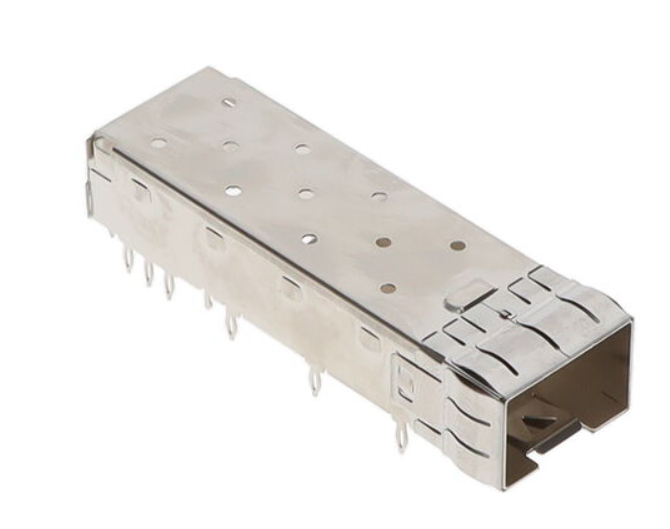

| Product Type | SFP+ Cage Assembly |
| Configuration | 1 × 1 (Single Port) |
| Connector Type | SFP+ (Backward compatible with SFP) |
| Mounting Type | Through Hole, Right Angle |
| Termination Method | Press-Fit (Compliant Pin) |
| Shielding | EMI Shielded with Spring Fingers |
| Material (Cage) | Copper Alloy, 0.25 mm thickness, Nickel Plated |
| Material (Spring Finger) | Stainless Steel |
| Port Compatibility | SFP+ and SFP Transceivers |
| Light Pipe | Optional Light Pipe Assembly Available |
| PCB Thickness Requirement | ≥ 1.57 mm (Single-sided) |
| Press-Fit Pin Length | 3.05 mm |
| Dimensions (L × W × H) | 49 × 15.12 × 10.85 mm |
| Operating Temperature Range | -40°C to +85°C (typical requirement) |
| RoHS Compliance | No Exemptions / Compliant |
| Packaging Type | Tray |
| Application | Telecom, Data Centers, Networking Equipment |
