LPJG4926-7HENL PoE+ RJ45 Connector with 1000Base-T Integrated Magnetics

1×1 1000Base-T RJ45 MagJack with integrated magnetics, PoE+ (802.3at) support, link/activity LEDs, and full EMI shielding. UL-listed, –40°C to +85°C.

LPJG4926-7HENL 1000BASE-T PoE+ Magjack Overview

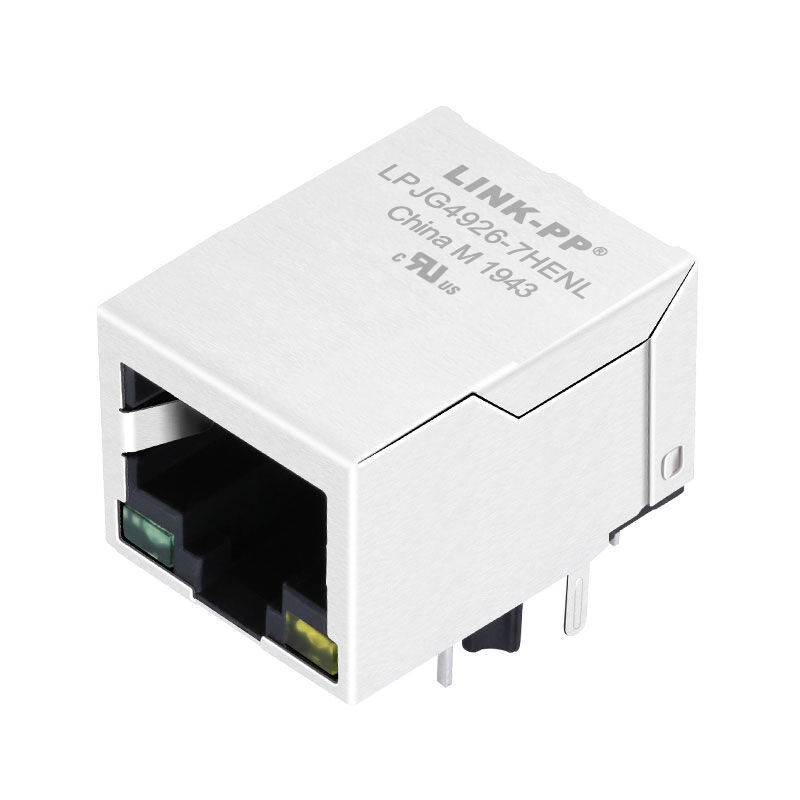

The LINK-PP LPJG4926-7HENL is a rugged single-port (1×1) RJ45 Magjack (10P8C) that integrates the magnetic transformer inside the connector. It supports Gigabit Ethernet (1000Base-T) and meets IEEE 802.3at PoE+ standards. Built to industrial specifications, it is UL-certified and RoHS/REACH-compliant, and operates over –40°C to +85°C. With built-in green/yellow link/activity LEDs and full metal shielding, this MagJack delivers stable high-speed data and power (up to 57 V, 720 mA per port) over a single cable, making it ideal for switches, routers, industrial PCs, smart meters, and other networking or PoE applications.

The LPJG4926-7HENL’s integrated magnetics (transformers and chokes) improve signal integrity and suppress electromagnetic interference (EMI). Embedding the magnetics inside the jack eliminates the need for separate components, saving PCB space and improving reliability. This design yields low insertion loss and high common-mode rejection, ensuring clear Gigabit Ethernet signals even in noisy environments.

Key Features

• Integrated Magnetics (MagJack): Internal Ethernet transformer and chokes provide superior EMI shielding and signal reliability. This fully integrated design simplifies board layout and reduces PCB component count.
• 1000Base-T Gigabit & PoE+ Support: Supports up to 1 Gbps data rates and complies with IEEE 802.3at (PoE+) for power delivery. Allows powering devices like IP cameras and VoIP phones directly over the cable (57 V, 720 mA) without external power bricks.
• Link/Activity LEDs: Dual LEDs (left = green, right = yellow) indicate link status and network activity, aiding quick diagnostics and installation verification.
• Full Shielding & EMI Protection: Metal housing and embedded magnetics yield “enhanced EMI shielding, boosting both connection integrity and signal reliability”. This makes the connector resistant to interference in industrial and telecom environments.
• Industrial Durability: Through-hole (THT) mount with a down-facing latch ensures secure connections. Rated for –40 °C to +85 °C operation and UL File E484635 certification, it meets rigorous quality and safety standards.

LPJG4926-7HENL PoE+ RJ45 Connector Specifications

Electrical Specifications

By combining Gigabit speed, PoE+ power, and magnetics in one module, the LPJG4926HENL provides a turnkey RJ45 solution that enhances signal quality and simplifies Ethernet designs. Its industrial-grade build with LEDs and wide-temperature support delivers reliable performance for high-speed networking and power-over-Ethernet applications.

LPJG4926-7HENL RJ45 Connector Datasheet

Mechanical and Material Information

The LPJG4926-7HENL is built with durable materials and production details that support dependable use in Ethernet hardware:

• Housing: Thermoplastic PBT + 30% G.F, UL94V-0
• Contact Material: Phosphor Bronze C5210R-EH, thickness 0.35mm
• Pins: Brass C2680R-H, thickness 0.35mm
• Shield: SUS 201-1/2H, thickness 0.2mm
• Contact Plating: Gold 15 micro-inches minimum in contact area
• Insertion Cycles: 750 minimum, more than 5000 maximum
• Wave Solder Tip Temperature: 250°C for 5 seconds
• UL Certification: File Number E484635

FAQ about LPJG4926-7HENL Magnetic RJ45 Connector

The LPJG4926-7HENL RJ45 Connector with Integrated Magnetics is a dependable choice for engineers and manufacturers who need a compact, shielded, and high-performance 1000Base-T PoE+ MagJack. With strong electrical performance, durable construction, and broad application support, it is well suited for modern Ethernet product designs.

1. What is an RJ45 connector with integrated magnetics?

An RJ45 connector with integrated magnetics combines the Ethernet jack and the magnetic components into one part. This design helps simplify PCB layout, reduce component count, and improve assembly efficiency.

2. Is the LPJ4013EDNL suitable for PoE+ applications?

Yes. The LPJ4013EDNL is designed for PoE+ and supports IEEE 802.3at requirements.

3. What is the LPJG4926-7HENL used for?

It is used in 1000Base-T Ethernet equipment that requires an RJ45 connector with integrated magnetics, especially in PoE+ applications.

4. Does this connector support 1000Base-T?

Yes. The LPJ4013EDNL is a 1000Base-T RJ45 connector with integrated magnetics.

5. Is this connector shielded?

Yes, it is a shielded RJ45 MagJack design.

6. What mounting method does it use?

It uses through-hole (THT) mounting and supports wave solder assembly.
