Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 0826-1A1T-23-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.65-$1.1
Packaging Details: Tray
Delivery Time: Within 2-3 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5000K/Month

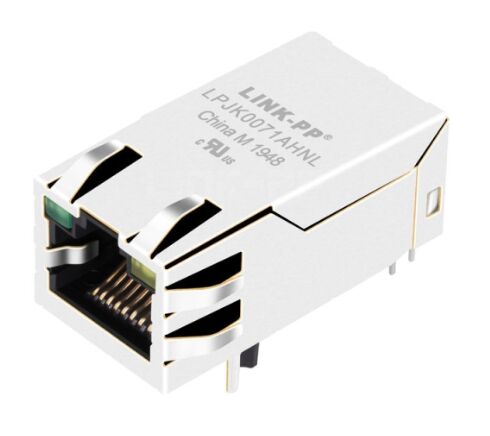

Part Number: |
0826-1A1T-23-F |
Number Of Ports: |
Single-port (1×1) |
Connector Type: |
RJ45 Integrated Magnetics |
Compatible: |
LPJK0071AHNL |
LED Indicators: |
Yellow/Green |
EMI Tabs: |
With |
RoHS: |
Yes |
OCL: |
350 µH MIN @ 8mA DC Bias |
Part Number: |
0826-1A1T-23-F |
Number Of Ports: |
Single-port (1×1) |
Connector Type: |
RJ45 Integrated Magnetics |
Compatible: |
LPJK0071AHNL |
LED Indicators: |
Yellow/Green |
EMI Tabs: |
With |
RoHS: |
Yes |
OCL: |
350 µH MIN @ 8mA DC Bias |
| Parameter | Specification |
|---|---|
| Turns Ratio TP1 | 1CT : 1CT ±2% |
| Turns Ratio TP2 | 1CT : 1CT ±2% |
| Turns Ratio TP3 | 1CT : 1CT ±2% |
| Turns Ratio TP4 | 1CT : 1CT ±2% |
| OCL @ 100kHz/100mVRMS (8mA DC Bias) | 350 µH min. |
| Insertion Loss, 0.1MHz to 1MHz | -1.1 dB max |
| Insertion Loss, 1MHz to 65MHz | -0.5 dB max |
| Insertion Loss, 65MHz to 100MHz | -0.8 dB max |
| Insertion Loss, 100MHz to 125MHz | -1.2 dB max |
| Return Loss, 0.5MHz to 40MHz | -18 dB |
| Return Loss, 40MHz to 100MHz | -12 + 20log(f/80MHz) dB |
| Common Mode to Common Mode Rejection, 100kHz to 100MHz | -30 dB min |
| Common Mode to Differential Mode Rejection, 100kHz to 100MHz | -35 dB min |
| Hi-Pot / Isolation Voltage | 100% production tested to comply with IEEE 802.3 isolation requirements |
| Feature | Specification |
|---|---|
| Part Number | 0826-1A1T-23-F |
| Port Configuration | 1X1 (Single Port) |
| Orientation | Tab Up |
| Mounting Type | Through Hole Mount |
| Height Profile | Standard |
| EMI Tabs | Yes |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| Compliance | RoHS Compliant |
