Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH
Model Number: LP11ACS2000
Document: LP11ACS2000.pdf
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $6.92
Packaging Details: Tray
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,Western Union
Supply Ability: 5KK/Month
Compatible Brands: |
Molex |
Types: |
SFP |
Number Of Ports: |
1x1 |
Data Rate (Max)(Gb/s): |
4 |
Termination Method: |
Press Fit |
Lightpipes: |
Without |
Heatsinks: |
With |
EMI Containment Feature Type: |
Internal/External EMI Springs |
Compatible Brands: |
Molex |
Types: |
SFP |
Number Of Ports: |
1x1 |
Data Rate (Max)(Gb/s): |
4 |
Termination Method: |
Press Fit |
Lightpipes: |
Without |
Heatsinks: |
With |
EMI Containment Feature Type: |
Internal/External EMI Springs |

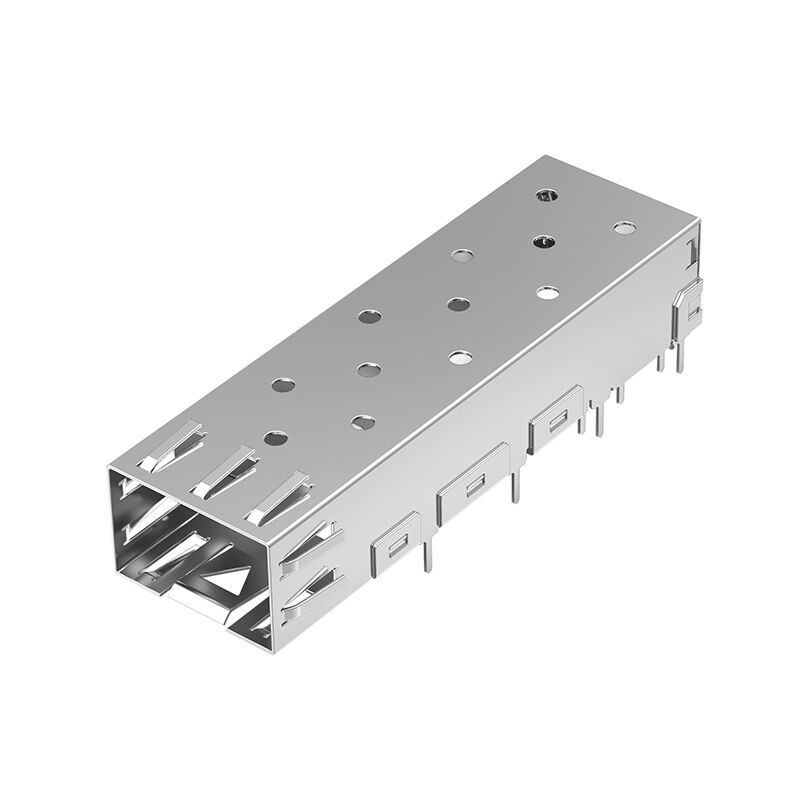

LP11ACS2000 is a 1x1 SFP cage with EMI spring finger, copper alloy Ni-plated structure, tray packaging, and wide operating temperature range from -55°C to +85°C.
The LP11ACS2000 SFP Cage is a 1x1 SFP cage with EMI spring finger designed for compact high-speed optical networking applications. Its metal housing uses copper alloy with nickel plating to support durability and EMI control, while the integrated spring-finger structure helps improve electromagnetic containment at the port interface. According to the drawing, the part is supplied in tray packaging and is rated for -55°C to +85°C operating temperature.
| Item | Specification |
|---|---|
| Product Name | LP11ACS2000 |
| Product Type | SFP Cage |
| Configuration | 1x1 Port |
| Number of Ports | 1 |
| EMI Feature | EMI Springs |
| Material | Copper Alloy, Ni-Plated |
| Packaging | Tray Packaging |
| Operating Temperature | -55°C to +85°C |
| Lightpipe | No |
| Length | 48.75 mm |
| Width | 15.10 mm |
| Height | 9.75 mm |
The LP11ACS2000 SFP Cage is optimized for high-density networking equipment, including:
LP11ACS2000 is a 1x1 SFP cage with EMI spring finger designed for single-port SFP module integration.
The cage material is listed as copper alloy, Ni-plated.
The operating temperature range is -55°C to +85°C.
No. The datasheet lists Included Lightpipe: No.
The drawing shows an approximate size of 48.75 mm x 15.10 mm x 9.75 mm.
