LP21BC01101 2x1 SFP+ Cage Connector With LightPipe And EMI Springs

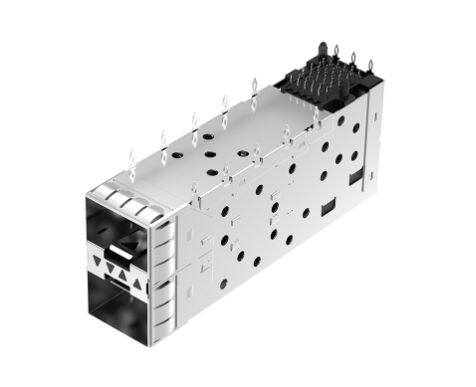

The LP21BC01101 SFP+ Cage is a 2x1 port stacked SFP+ cage connector assembly designed for compact, high-speed network hardware that requires reliable signal integrity, strong EMI protection, and efficient front-panel optical/transceiver alignment. Built with lightpipe support, through-hole press-fit PCB termination, and EMI springs, this cage is well suited for modern networking equipment where mechanical stability and board-level performance matter.

According to the drawing, this part is a 2x1 SFP+ cage connector assembly with two stacked ports, making it a practical solution for space-conscious designs that still need dual-port connectivity. The cage structure and EMI-focused design help support stable operation in demanding environments.

Technical Specifications of 2x1 SFP+ Cage Connector

LP21BC01101 SFP+ Cage Drawing - RECOMMENDED PCB LAYOUT

Key Features and Benefits

• High-Speed Data Performance: Optimized for data rates up to 16 Gb/s, supporting SFP+ standards for high-bandwidth applications.
• Integrated Lightpipes: Features built-in lightpipes for clear, real-time visual status indication of port activity, streamlining system monitoring.
• Superior EMI Protection: Equipped with EMI Springs for industry-leading electromagnetic interference containment, ensuring signal integrity in noisy environments.
• Space-Saving Stacked Design: The 2x1 port configuration maximizes port density on the PCB, allowing for more compact network equipment designs.
• Solderless Press-Fit Termination: Utilizes a through-hole press-fit method for easy, reliable, and repeatable installation on printed circuit boards.
• Industrial Durability: Rated for an extensive operating temperature range of -40°C to +85°C, suitable for both commercial and industrial-grade environments.

SFP+ Cage Connector Typical Applications

The LP21BC01101 SFP+ cage is engineered for high-reliability sectors, including:

• Networking Infrastructure: Enterprise switches, high-speed routers, and hubs.
• Data Centers: Storage Area Networks (SAN), servers, and Network Attached Storage (NAS).
• Telecommunications: Base stations, optical transport equipment, and broadband access.
• Industrial Computing: High-speed data acquisition and industrial Ethernet systems.

FAQ about LP21BC01101 2x1 SFP+ Cage

The LP21BC01101 SFP+ Cage is built for engineers and system designers who need a compact, EMI-conscious, high-speed 2-port SFP+ cage solution with dependable PCB mounting and lightpipe compatibility.

1. What is LP21BC01101?

LP21BC01101 is a 2x1 stacked SFP+ cage connector assembly designed for high-speed networking applications.

2. Does LP21BC01101 support lightpipes?

Yes. This model is specified with lightpipe support.

3. What is the maximum data rate?

The specified maximum data rate is 16 Gb/s.

4. What termination method does it use?

It uses through-hole press-fit termination to the printed circuit board.

5. Does it include a heatsink?

No, this model is specified without a heatsink.

6. What EMI feature does it use?

The EMI containment feature type is EMI springs.
