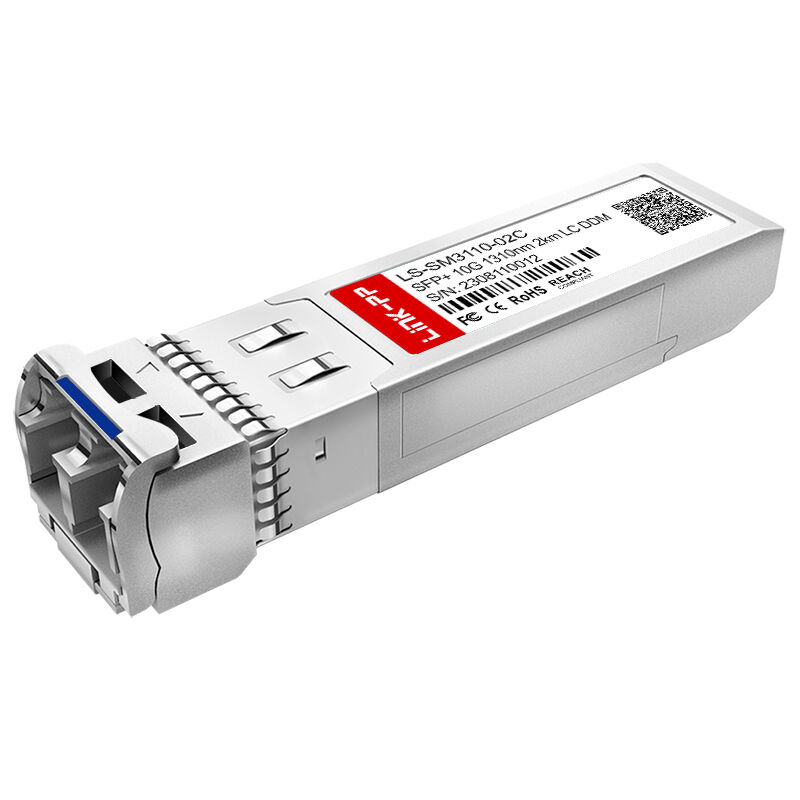

LINK-PP LS-SM3110-02C 10G SFP+ 1310nm 2km SMF 10GBASE-LRM Module

LS-SM3110-02C is a hot-pluggable 10G SFP+ optical transceiver with 1310nm FP laser, Duplex LC interface, DOM support, and up to 2km transmission over SMF.

Technical Specifications of 10GBASE-LRM Module

Key Features of LS-SM3110-02C 10G 1310nm 2km SFP+ Module

The LINK-PP LS-SM3110-02C is a high-performance, cost-effective 10G SFP+ optical transceiver engineered for short-to-medium reach optical communications. Operating at a data rate of 10.3Gbps, this module utilizes an un-cooled 1310nm FP laser and a highly sensitive PIN photodiode to deliver reliable data transmission up to 2km over Single Mode Fiber (SMF).

Fully compliant with SFP+ MSA and SFF-8472 standards, it features a Duplex LC receptacle and integrated Real-Time Digital Diagnostic Monitoring (DOM/DDM) to ensure optimal network health and easy troubleshooting. It is the perfect solution for 10G optical systems, LTE networks, and enterprise data center interconnects.

• High-Speed Data Rate: Supports up to 10.3Gbps bit rates for 10G Ethernet applications.
• Transmission Distance: Up to 2km over standard Single Mode Fiber (SMF).
• Advanced Optics: Features an un-cooled 1310nm FP laser transmitter and a PIN+TIA receiver.
• Real-Time Monitoring: Built-in Digital Diagnostic Monitoring (DOM/DDM) compliant with SFF-8472.
• Standardized Form Factor: Hot-pluggable SFP+ footprint with a Duplex LC connector.
• Safety & Compliance: Class I laser safety compliant, SFP+ MSA compliant, and RoHS certified.

Applications of 10Gbps optical transceiver

The LS-SM3110-02C is suitable for a wide range of high-speed optical networking scenarios, including:

• 10Gbps optical systems
• LTE systems
• Enterprise network interconnects
• Data center short-reach fiber links
• Other optical communication links

Standards and Compliance

The LS-SM3110-02C is built to meet key industry requirements:

• SFP+ MSA compliant
• SFF-8472 compliant
• Class I laser safety compliant
• RoHS compliant

These standards help ensure compatibility, safety, and environmental responsibility across modern network installations.

 FAQs about LS-SM3110-02C 10GBASE-LRM Module

If you are searching for a 10G SFP+ 1310nm 2km SMF module, the LINK-PP LS-SM3110-02C offers a reliable, standards-compliant solution with Duplex LC connectivity, DOM support, and stable short-reach performance. It is a strong fit for users who need a compact and efficient 10Gbps optical transceiver for commercial fiber networking environments.

1. What is the LS-SM3110-02C used for?

The LS-SM3110-02C is a 10G SFP+ optical transceiver module used for short-reach fiber connections over single-mode fiber. It is commonly used in 10Gbps optical systems, LTE networks, and other high-speed link applications.

2. Does the LS-SM3110-02C support DOM/DDM?

Yes. The module supports Digital Optical Monitoring (DOM/DDM), allowing real-time monitoring of key transceiver operating parameters.

3. What type of fiber does this module use?

This module is designed for single-mode fiber (SMF) and uses a Duplex LC interface.

4. What is the maximum transmission distance?

The LS-SM3110-02C supports transmission distances of up to 2km.

5. Is there an industrial-temperature version?

Yes. The industrial version is LS-SM3110-02I, with an operating temperature range of -40°C to +85°C.
