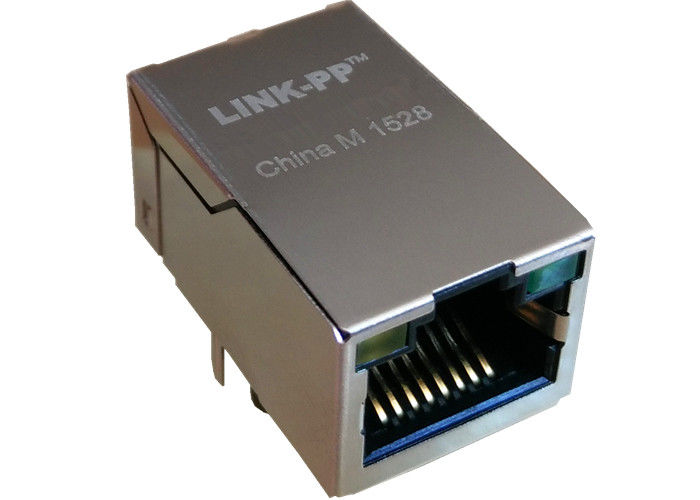

R16103DFG-UL Magnetic RJ45 Jack 25.4mm ATMEGA8535-16AUR ATX Motherboard

Name: R16103DFG-UL Magnetic RJ45 Jack 25.4mm ATMEGA8535-16AUR ATX Motherboard
Brand: LINK-PP
SKU: R16103DFG-UL
Rating: 4.9 (141 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: R16103DFG-UL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specifications:	R16103DFG-UL	P/N:	LPJ1014BGNL
Application:	10/100 Base-T	Termination:	Solder
LEDs:	Optional	Samples:	Free

Specifications:	R16103DFG-UL
P/N:	LPJ1014BGNL
Application:	10/100 Base-T
Termination:	Solder
LEDs:	Optional
Samples:	Free

R16103DFG-UL Magnetic RJ45 Jack 25.4mm ATMEGA8535-16AUR ATX Motherboard

R16103DFG-UL Magnetic RJ45 Jack ATMEGA8535-16AUR ATX Motherboard

10/100Base-T Single Port Rj45 Tab-up 25.4mm Applications
1X1, INT. MAG., LED, REVERSE LATCH
LPJ1014BGNL Compatible to R16103DFG-UL
LED optional, EMI-finger Optional.
Hi-Pot:1500V rms MIN

1X1-Tab-up RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

2600 staff,

100% test

Flexible delivery time
