Part Number: |
74990101210 (LPJD4011BENL) |
Latch: |
Tab UP |
Application-Lan: |
Ethernet (NoN PoE) |
Speed: |
10/100 Base-T |
LED Option: |
Green/Yellow |
Temperature: |
-40℃ TO 85℃ |
Number Of Positions/Contacts: |
8p8c (RJ45, Ethernet) |
Number Of Ports: |
1X1 Port |
Orientation: |
180° Angle (Right) |
PCB Mount Angle: |
THT Solder |
Shield EMI Tabs: |
Without |
AutomDX: |
YES |
Part Number: |
74990101210 (LPJD4011BENL) |
Latch: |
Tab UP |
Application-Lan: |
Ethernet (NoN PoE) |
Speed: |
10/100 Base-T |
LED Option: |
Green/Yellow |
Temperature: |
-40℃ TO 85℃ |
Number Of Positions/Contacts: |
8p8c (RJ45, Ethernet) |
Number Of Ports: |
1X1 Port |
Orientation: |
180° Angle (Right) |
PCB Mount Angle: |
THT Solder |
Shield EMI Tabs: |
Without |
AutomDX: |
YES |
| Overview | 10/100 Base-T Vertical RJ45 Connector With Magnetic |
|---|---|
| Electrical Specification @25℃ | |
| Turn Ratio (±3%) | TX=1CT:1CT RX=1CT:1CT |
| Inductance OCL | 350uH MIN @100KHz 0.1V 8mA DC Bias |
| DCR | 1.2Ω MAX |
| Insertion Loss |
-0.1dB MAX @1-100MHz |
| Return Loss |
-18dB MIN @1-30MHz -15dB MIN @30-60MHz -12dB MIN @60-100MHz |
| Cross Talk |
-40dB MIN @30MHz -35dB MIN @60MHz -30dB MIN @100MHz |
| Common Mode Rejection | -30dB MIN @1-100MHz |
| Hipot Test | 1500Vrms |
| Operating Temperature Range | -40℃ up to 85℃ |
| Termination Related Features | |
| EMI Finger | Without |
| Termination Method | Solder |
| Wave solder tip temperature | 265℃ Max, 5 Sec Max |
| Body Related Features | |
| Port Configuration | Single Port |
| Shielded | Yes |
| Yes | Standard - Latch UP |
| Contact Related Features | |
| Preloaded | Yes |
| Contact Termination Type | Through Hole |
| Identification Marking | |
| Left LED Color (Position #1) | Green - 250 ohm resistor |
| Right LED Color (Position #2) | Green - 250 ohm resistor |
|
Size
|
|
| Connector Height (Inches/mm) | 0.665/16.90 |
| Connector Length (Inches/mm) | 0.657/16.70 |
| Connector Width (Inches/mm) | 0.636/16.15 |
| Connector Material | |
| Housing Material | Thermoplastic PRT+30%G.F |
| Contact Material | Phosphor Bronze C5210R-EH Thickness=0.35mm |
| Pins | C2680R-H Thickness=0.35mm |
| Shield | SUS 201-1/2H Thickness=0.2mm |
| Contact Plating | Gold 6 micro-inches min. In contact area. |
| Industry Standards | |
| RoHS/ELV Compliance | RoHS-compliant, ELV-compliant |
| Lead-Free Solder Processes |
Wave solder capable of 240°C Wave solder capable of 260°C Wave solder capable of 265°C |
| RoHS/ELV Compliance History | Always was RoHS compliant |
| UL Certification | Film Number E484653 |
| Connector Housing Flammability Rating | UL94V-0 |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature (°C ) | Office / Premises |

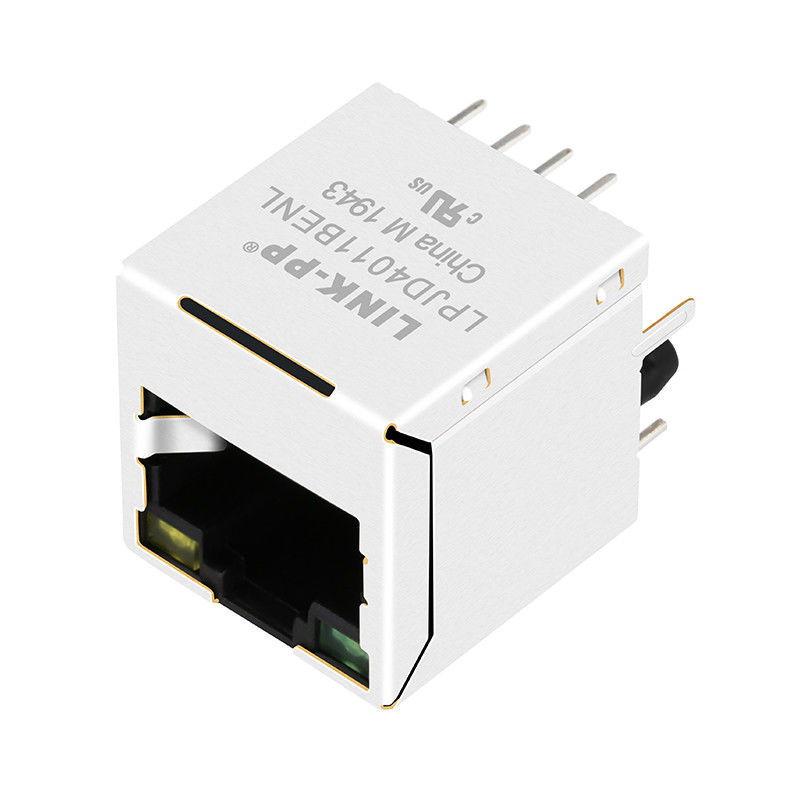

74990101210 (LPJD4011BENL) Drawing
