Model Number: LPJK7403B97NL
Document: LPJK7403B97NL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.7-$1.05
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 5KK/Month
P/N: |
LPJK7403B97NL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
P/N: |
LPJK7403B97NL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

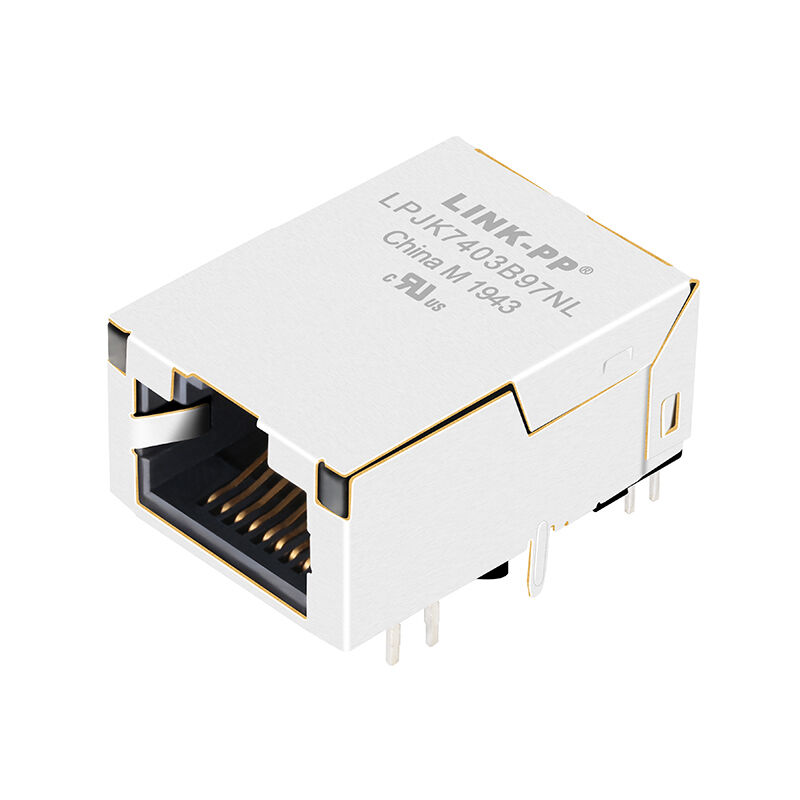

The LINK-PP LPJK7403B97NL is a premium-grade, single-port (1x1) Gigabit RJ45 Magjack connector engineered for 1000Base-TX networking applications. Featuring integrated magnetics, this right-angle, through-hole connector ensures superior signal integrity and EMI suppression for high-speed Ethernet environments. Built to withstand industrial operating temperatures from -40 to +85 Celsius and equipped with customizable LED indicators, the LPJK7403B97NL is the reliable choice for networking hardware, telecommunications, and industrial automation designs.
The LPJK7403B97NL is a high-performance 1×1 Gigabit Ethernet RJ45 MagJack designed for 1000Base-TX networking applications. Featuring integrated magnetics, 1500Vrms isolation, dual-color LED indicators, and industrial-grade operating temperatures from -40°C to +85°C, this connector provides a reliable and space-saving solution for modern Ethernet equipment.
Manufactured by LINK-PP, the LPJK7403B97NL complies with IEEE 802.3 requirements, making it suitable for networking devices that demand robust EMI performance, signal integrity, and long-term reliability.
- Gigabit Speed: Optimized for 1000Base-TX Ethernet applications.
- Integrated Magnetics: 350uH minimum OCL with 8mA bias ensures robust data transmission.
- Extreme Temperature Durability: Reliable operation in harsh environments (-40 to +85 Celsius).
- High-Quality Shielding: SUS 304-1/2H shielding with nickel plating for excellent EMI protection.
- Global Compliance: IEEE 802.3 compliant, UL Certified (E484635), and RoHS compliant.
| Parameter | Specification |
|---|---|
| Part Number | LPJK7403B97NL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Connector Type | RJ45 MagJack (12P8C, Ethernet) |
| Speed | 1000Base-TX (Gigabit Ethernet) |
| Number of Ports | 1×1 Port |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle (Side Entry) |
| Latch Orientation | Latch Up |
| PoE Function | Non-PoE |
| EMI Shield Tabs | Without |
| Left LED | Yellow / Green (Pins 15, 16, 17) |
| Right LED | Green (Pins 13, 14) |
