Product Details
Place of Origin: Guangdong, Huizhou
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJD0011DNL
Document: LPJD0011DNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.58
Packaging Details: 50pcs/tray,1000pcs/carton
Delivery Time: Ships within 3 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5KK/Month
MPN: |
LPJD0011DNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
Without |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
0°C To +70°C |
MPN: |
LPJD0011DNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
Without |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
0°C To +70°C |

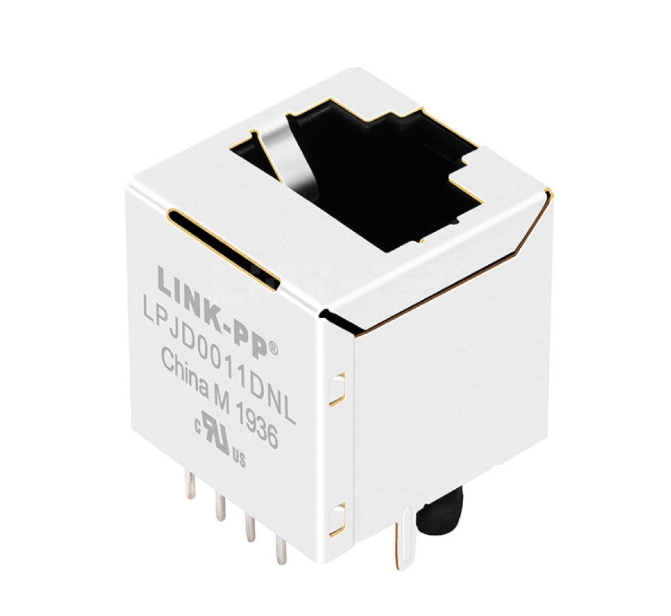

The LINK-PP LPJD0011DNL is a highly reliable Vertical (180° Top Entry) RJ45 Magjack designed for 10/100Base-T Fast Ethernet applications. By integrating the isolation magnetics and common-mode chokes directly into a vertical housing, this connector minimizes PCB footprint and optimizes cable routing in tight or stacked enclosure designs.
Operating within a 0°C to 70°C commercial temperature range, the LPJD0011DNL is fully compliant with IEEE 802.3 standards. It features a robust Bob Smith termination circuit to suppress EMI and is completely LED-free, making it a cost-effective, space-saving solution for SOHO modems, switches, and LAN-on-Motherboard (LOM) applications.
| Feature | Specification |
| Manufacturer / Brand | LINK-PP |
| Part Number (MPN) | LPJD0011DNL |
| Product Type | Vertical RJ45 Connector with Magnetics (Magjack) |
| Network Speed | 10/100 Base-T (Fast Ethernet) |
| Mounting Angle / Style | 180° Vertical (Top Entry) / Through Hole (THT) |
| Ports & Contacts | 1x1 Port / 8P8C |
| LED Option | Without LED |
| Dimensions (W x L x H) | 16.00 mm x 16.70 mm x 16.90 mm |
| Operating Temperature | 0°C to +70°C |
| Parameter | Value |
| Turns Ratio (TX / RX) | 1CT : 1CT / 1CT : 1CT |
| Inductance (OCL) | 350 µH Min. (@ 100KHz, 0.1V, 8mA DC Bias) |
| HiPot (Isolation Voltage) | 1500 Vrms |
| Insertion Loss | -1.0 dB Max (0.3 ~ 100MHz) |
| Return Loss (Min) | -18dB (1~30MHz) | -16dB (40MHz) | -12dB (50MHz) | -10dB (60MHz) |
| Crosstalk & CMR (Min) | -30dB @ 100MHz (Crosstalk) | -20dB @ 100MHz (CMR) |
Unlike standard right-angle connectors, the 180-degree vertical orientation allows network cables to be plugged in from the top. This is critical for top-down chassis designs, testing equipment, and dense multi-board configurations.
The internal schematic features integrated isolation transformers alongside a built-in Bob Smith termination circuit. Unused pins and center taps are terminated with 75Ω resistors and share a 1000pF/2KV high-voltage capacitor connected to the shield ground. This significantly reduces electromagnetic interference (EMI) and prevents signal reflection.
The LPJD0011DNL is engineered for standard indoor and commercial networking hardware, including:
SOHO Equipment: ADSL/VDSL modems, home routers.
Networking: Fast Ethernet Hubs and Switches.
Computing: LAN-on-Motherboard (LOM) and embedded PC boards.
A: It features a 180-degree vertical (top entry) mounting orientation, meaning the Ethernet cable is inserted perpendicular to the PCB.
A: No, the LPJD0011DNL is designed for standard LAN Ethernet data transmission (Non-PoE).
A: It supports a standard commercial operating temperature range of 0°C to 70°C.
A: No, this specific model (LPJD0011DNL) is designed without LED indicators to save cost and simplify PCB routing.
A: For THT wave soldering, the recommended maximum tip temperature is 265°C for a duration of no more than 5 seconds.
