Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJD4536BHNL
Document: LPJD4536BHNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.65
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5KK/Month
MPN: |
LPJD4536BHNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
MPN: |
LPJD4536BHNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Data Rate: |
1000Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

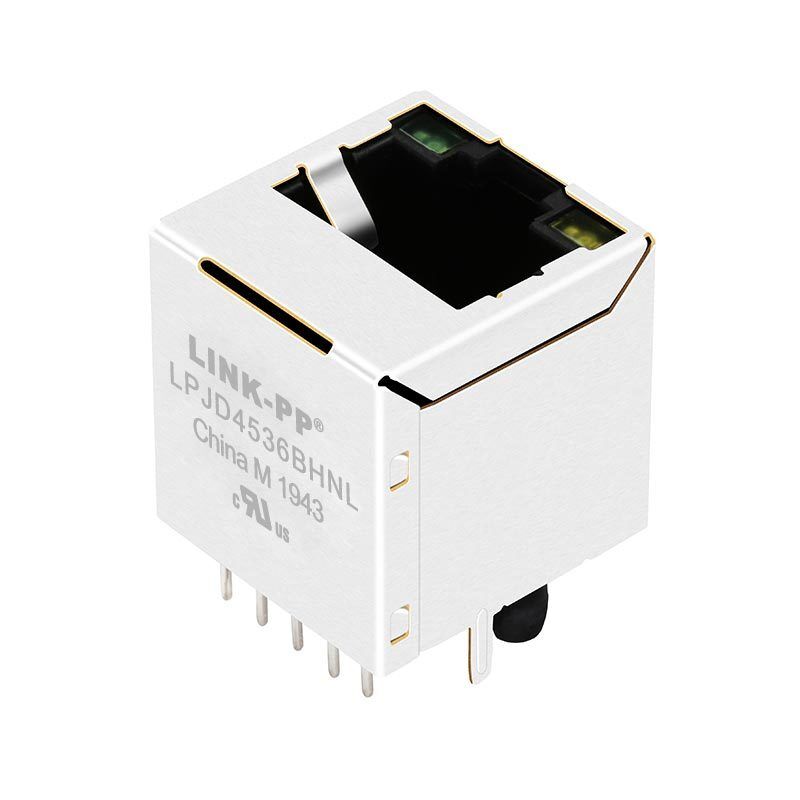

The LINK-PP LPJD4536BHNL is a premium Vertical (Top-Entry) RJ45 Connector with Integrated Magnetics, engineered for high-speed 1000 Base-T (Gigabit Ethernet) applications. Designed to save horizontal PCB space, this top-entry connector is ideal for dense network switches, routers, and LAN-on-Motherboard (LOM) designs.
Built to withstand harsh environments, it features an industrial operating temperature range of -40℃ to +85℃. The connector is housed in a robust SUS201 stainless steel shield (without EMI spring fingers for a flush panel fit) and is fully UL Certified (File E484635) and IEEE 802.3 compliant, ensuring top-tier safety and signal integrity for enterprise and industrial networking hardware.
| Feature | Specification |
| Manufacturer | LINK-PP |
| Part Number (MPN) | LPJD4536BHNL |
| Data Rate | 1000 Base-T (Gigabit Ethernet) |
| Mounting Style | Vertical / Top Entry / Through Hole (THT) |
| Operating Temperature | -40℃ to +85℃ (Industrial Grade) |
| Housing Material | PBT Black, UL94V-0 |
| Contact Material | Phosphor Bronze (T=0.35mm) with 6µ" Gold Plating |
| Shielding | SUS201 Stainless Steel (T=0.2mm), Without EMI Spring Fingers |
| LED Configuration | Left: Green (565nm) | Right: Yellow (585nm) |
| Parameter | Value |
| Turns Ratio | 1CT : 1CT (±5%) |
| Inductance (OCL) | 350 µH Min (@ 100KHz, 0.1V, 8mA DC Bias) |
| Isolation Voltage (HiPot) | 1500 Vrms (PHY Side to Line Side) |
| Insertion Loss | -1.2 dB Max (1-100MHz) |
| Return Loss (Min) | -16dB (1-30MHz) | -12dB (30-60MHz) | -8dB (80-100MHz) |
| Crosstalk & CMR | -30dB Min (1-100MHz) |
Looking for a LPJD4536BHNL 1000Base-T RJ45 Vertical connector with LED?
Contact LINK-PP for:
Get your quotation and datasheet today.
