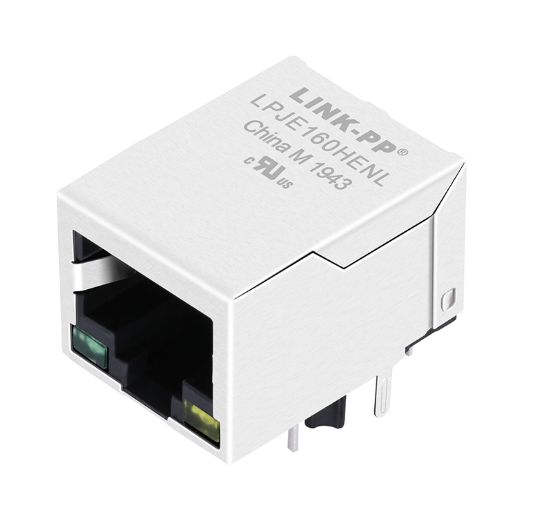

LPJE160HENL Tab-Down RJ45 Modular Jack with Green/Yellow LEDs, Industrial Grade

The LINK-PP LPJE160HENL is a ruggedized, single-port (1x1) 8P8C shielded RJ45 modular jack engineered without integrated magnetics (Non-MagJack / direct pass-through). Designed in a space-saving Tab-Down (Latch-Down) orientation with integrated Green and Yellow LED status indicators, it provides a compact depth profile of just 21.30 mm—over 30% shorter than standard MagJack connectors.

Operating reliably across an extended industrial temperature range of -40°C to +85°C, the LPJE160HENL features a 1000V AC dielectric withstand voltage, durable 50 µ-inch gold flash contact plating, and UL 94V-0 flame-retardant thermoplastic housing (UL Certified: File E484635). It is the premier interconnect choice for hardware designs requiring external discrete transformer topologies, high-voltage medical/industrial isolation, or non-Ethernet serial bus interfaces including RS-485, RS-232, CAN bus, DMX-512, and Modbus.

[Engineering Action Hub]

• 📥 [Download Official Engineering Drawing LP09102425 (LPJE160HENL.pdf)]
• 📐 [Download 3D STEP Model & ECAD Footprints (Altium / KiCad / OrCAD)]
• 🎁 [Request Free Engineering Evaluation Samples]
• 📊 [Request Direct Manufacturer Price Quote (RFQ)]

Technical Specifications & Parametric Data

1. General & Mechanical Specifications

2. Electrical Specifications (@ 25°C)

3. Integrated LED Optical & Electrical Specifications

To prevent reverse-polarity layout errors, the internal LED circuitry and optical parameters are defined below:

LEFT LED (GREEN)                 RIGHT LED (YELLOW)
      PIN 9 (+)                        PIN 11 (+)
        ┌─▲─┐                            ┌─▲─┐
        │   │                            │   │
        └───┘                            └───┘
      PIN 10 (-)                       PIN 12 (-)

4. Environmental & Soldering Profile

• Operating Temperature Range: -40°C to +85°C (True industrial extended grade)
• Storage Temperature Range: -40°C to +85°C
• Wave / Reflow Soldering Thermal Limit: 250°C tip temperature for 5 seconds maximum

LPJE160HENL RJ45 Modular Jack Datasheet - Mechanical

Why Choose a Non-Magnetic RJ45?

While MagJacks dominate standard PC networking, the non-magnetic LPJE160HENL solves critical architectural challenges across industrial and non-Ethernet applications:

1. Non-Ethernet Serial Protocols (RS-485 / CAN / DMX-512) Integrated transformers block DC/low frequencies. The LPJE160HENL allows full pass-through of DC/serial data.
2. 2High-Isolation Medical / Discrete Magnetics Enables board designers to pair with specialized 4kV~6kV reinforced isolation discrete transformers on the PCB.
3. Compact 21.30 mm Depth (Space-Constrained Enclosures) Over 10 mm shorter than typical MagJacks (>32 mm depth), drastically reducing front-panel to backplane footprint.

Mechanical Dimensions & Recommended PCB Layout

RECOMMENDED PCB LAYOUT DIMENSIONS (TOP VIEW)

            15.80 mm [Width]
     ┌─────────────────────────────┐
     │  [Front Mating Cavity]      │
     │                             │
     │  (2-Ø3.25) Locating Pegs    │  Spacing: 12.93 mm
     │  (2-Ø1.70) Shield Tabs      │  Spacing: 15.50 mm
     │                             │
     │  Pin 9-12 (LEDs)            │  Pitch: 2.54 mm
     │  Pin 1-8  (Signal Contacts) │  Pitch: 1.27 mm offset / 2.54 mm row
     └─────────────────────────────┘
              21.30 mm [Depth]

• Overall Outer Dimensions: 15.80 mm (Width) × 13.70 mm (Height above PCB) × 21.30 mm (Depth).
• Locating Peg Diameter: 2× Ø3.25 mm holes spaced at 12.93 mm center-to-center for mechanical anti-twist stabilization.
• Shield Ground Post Spacing: 2× Ø1.70 mm holes spaced at 15.50 mm for rigid panel ground bonding.
• Signal Contact Spacing: 8× Ø0.90 mm holes in staggered dual rows (1.27 mm column pitch, 2.54 mm row pitch).

Packaging, Sourcing & Master Carton Logistics

The LPJE160HENL is delivered in custom-molded, electrostatic-discharge (ESD) safe trays designed for automated pick-and-place insertion and standardized assembly lines:

• Primary Packaging (Tray): 50 pieces per molded tray.
• Stack Configuration: 20 trays per vertical stack (1,000 pieces).
• Master Carton Packaging: 2 stacks = 40 trays = 2,000 pieces per master carton.
• Master Carton Dimensions: 525 mm × 300 mm × 235 mm.
• Standard Factory Lead Time: 2–4 Weeks (Buffer stock maintained for dynamic OEM forecasting).
• Shipping Documentation: Certificate of Conformance (CoC), RoHS Compliance Statement, Packing List, and Full Lot Traceability.

Frequently Asked Questions

Q1: What is the functional difference between LPJE160HENL and an RJ45 MagJack?

A: The LPJE160HENL contains no internal magnetic transformers or choke coils. It is a direct physical pass-through connector. If you are designing a standard 10/100/1000BASE-T Ethernet port with this part, you must place discrete magnetic transformers on your PCB. Conversely, if you are designing RS-485, CAN bus, or proprietary DC systems over RJ45, the non-magnetic design is mandatory to prevent inductive shorting of DC signals.

Q2: What is the exact pin polarity for the integrated LEDs?

A: According to engineering drawing:

• Left LED (Green): Pin 9 is Anode (+), Pin 10 is Cathode (-).

• Right LED (Yellow): Pin 11 is Anode (+), Pin 12 is Cathode (-).

Q3: What is the mechanical significance of "Tab-Down" orientation?

A: "Tab-Down" (or Latch-Down) means that the RJ45 cable plug release latch faces downwards toward the surface of the PCB. This design prevents mechanical interference with upper chassis lips, daughterboards, or display bezels mounted closely above the RJ45 port.

Q4: Is LPJE160HENL rated for harsh industrial environments?

A: Yes. Unlike standard commercial modular jacks rated only for 0°C to +70°C, the LPJE160HENL is fully rated for -40°C to +85°C operating temperatures, features a high-durability contact rating of 750 mating cycles, and carries UL 94V-0 flammability certification (File E484635).
