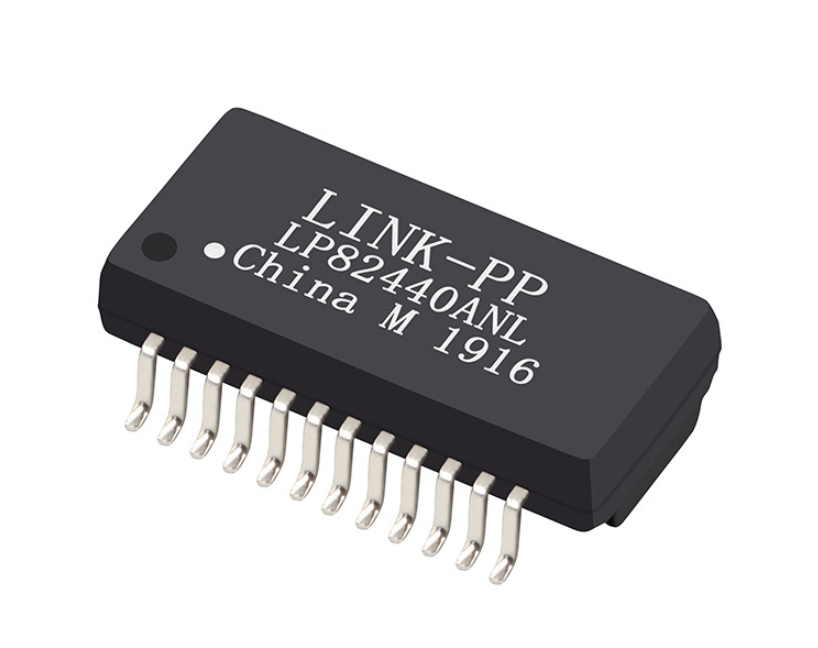

Model Number: LP82440ANL
Document: LP82440ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $ 0.34
Packaging Details: Reel
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5KK/Month
Part Number: |
LP82440ANL |
OCL: |
350 µH Min |
DCR: |
1.2 Ω Max |
Hi-pot: |
1500 Vrms |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
PoE |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LP82440ANL |
OCL: |
350 µH Min |
DCR: |
1.2 Ω Max |
Hi-pot: |
1500 Vrms |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
PoE |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
| Parameter | Specification | Engineering Benefit |
|---|---|---|
| Ethernet Speed | 1000 BASE-T (Gigabit Ethernet) | Fully compliant with IEEE 802.3 gigabit transceivers |
| Component Height | 4.0 mm Maximum (Ultra-Low Profile) | Ideal for backplanes, thin PCIe daughter cards, and blade systems |
| PoE Compatibility | PoE / PoE+ Capable | Line-side center taps (MCT1–MCT4) dedicated for DC power extraction |
| Operating Temp | -40°C to +85°C (True Industrial) | Guaranteed operation in unventilated sealed industrial enclosures |
| Turns Ratio | 1CT : 1CT ±5% (All 4 Channels) | Symmetrical matching for voltage-mode and current-mode PHYs |
| Inductance (OCL) | 350 µH Min. (@ 100 kHz, 100 mV, 8 mA DC) | Prevents core saturation under line DC current imbalances |
| Insertion Loss | -1.0 dB Max. (1 ~ 100 MHz) | Superior power throughput and longer cable reach margins |
| Leakage Inductance | 0.5 µH Maximum | Minimizes high-frequency ringing and jitter on gigabit pulse edges |
| DC Resistance (DCR) | 1.2 Ω Maximum | Reduces internal thermal dissipation under PoE load |
| High-Pot Isolation | 1500 Vrms Minimum | Complies with international safety and surge isolation standards |
| Parameter | Test Condition | Specification Limit |
|---|---|---|
| Turns Ratio | 100 kHz, 100 mV | 1CT : 1CT (±5%) |
| Open Circuit Inductance (OCL) | 100 kHz, 100 mV, 8 mA DC Bias | 350 µH Minimum |
| Insertion Loss | 1 ~ 100 MHz | -1.0 dB Maximum |
| Leakage Inductance (LL) | 100 kHz, 100 mV | 0.5 µH Maximum |
| DC Resistance (DCR) | Primary & Secondary | 1.2 Ω Maximum |
| Return Loss (100 Ω Load) | 1 ~ 30 MHz | -16.0 dB Minimum |
| Return Loss (100 Ω Load) | 30 ~ 60 MHz | -12.0 dB Minimum |
| Return Loss (100 Ω Load) | 60 ~ 80 MHz | -10.0 dB Minimum |
| Return Loss (100 Ω Load) | 80 ~ 100 MHz | -8.0 dB Minimum |
| Crosstalk (Near-End) | 1 ~ 100 MHz | -30.0 dB Minimum |
| Differential to Common Mode (DCMR) | 1 ~ 100 MHz | -30.0 dB Minimum |
| Dielectric Withstand (Hi-Pot) | 60 Seconds (PHY Side to Line Side) | 1500 Vrms Minimum |
| Operating Temperature Range | Continuous Industrial | -40°C to +85°C |
PHY / TRANSCEIVER SIDE LINE / RJ45 SIDE (PoE CAPABLE)
Pin 2 (TD1+) ───┐ 1CT:1CT ┌─── Common Mode ─── Pin 23 (MX1+)
) ( Choke
Pin 3 (TD1-) ───┴─────────┴─────────────────── Pin 22 (MX1-)
Pin 1 (TCT1) ─── Center Tap Pin 24 (MCT1) ─── PoE Tap 1
Pin 5 (TD2+) ───┐ 1CT:1CT ┌─── Common Mode ─── Pin 20 (MX2+)
) ( Choke
Pin 6 (TD2-) ───┴─────────┴─────────────────── Pin 19 (MX2-)
Pin 4 (TCT2) ─── Center Tap Pin 21 (MCT2) ─── PoE Tap 2
Pin 8 (TD3+) ───┐ 1CT:1CT ┌─── Common Mode ─── Pin 17 (MX3+)
) ( Choke
Pin 9 (TD3-) ───┴─────────┴─────────────────── Pin 16 (MX3-)
Pin 7 (TCT3) ─── Center Tap Pin 18 (MCT3) ─── PoE Tap 3
Pin 11 (TD4+) ───┐ 1CT:1CT ┌─── Common Mode ─── Pin 14 (MX4+)
) ( Choke
Pin 12 (TD4-) ───┴─────────┴─────────────────── Pin 13 (MX4-)
Pin 10 (TCT4) ─── Center Tap Pin 15 (MCT4) ─── PoE Tap 4| Parameter | Specification |
|---|---|
| Package Size | 15.1 mm (Length) × 7.1 mm (Body Width) × 10.0 mm (Total Span) |
| Total Height | 4.0 mm Max. |
| Pin Pitch | 1.0 mm pitch |
| Lead Width | 0.40 mm |
| Recommended PCB Land Pattern | Pad Width: 0.60 mm; Pad Length: 1.35 mm; Overall Row Span: 10.7 mm |
| IR Reflow – Preheat Zone | 150°C ~ 200°C (60–180 seconds) |
| IR Reflow – Liquidus Temperature (TL) | 217°C (60–150 seconds) |
| IR Reflow – Peak Temperature (TP) | 250°C (+0/−5°C); dwell time 5 seconds max. |
| Maximum Reflow Cycles | 2 times max. |
| Tape & Reel Packaging | Carrier Width: 24 mm; 800 pcs per 13" reel |
| Carton Packaging | 4,800 pcs / 6 reels |
Answer: Yes. The LP82440ANL is designed with dedicated line-side center taps on Pins 15, 18, 21, and 24 (MCT1 to MCT4). These center taps allow direct connection to onboard PoE PD (Powered Device) or PSE (Power Sourcing Equipment) controllers, supporting IEEE 802.3af and 802.3at power delivery over all four Ethernet pairs.
Answer: Its 4.0 mm maximum low-profile height and industrial-grade temperature rating (-40°C to +85°C) make it specifically compliant with dense telecom backplane architectures (such as CompactPCI, VPX, and ATCA), where vertical clearance between stacked circuit cards is strictly limited.
Answer: The LP82440ANL is a 100% form, fit, and function drop-in replacement for the Pulse HX5008NL. Both share an identical 24-pin SMD layout, 1CT:1CT turns ratio, 350 µH minimum OCL at 8 mA DC bias, -1.0 dB insertion loss, and industrial temperature range, requiring no PCB layout revisions.
