HFJ11-S101E-L11RL Network Connector Rj45 , PLCC SWITCH Applications

Name: HFJ11-S101E-L11RL Network Connector Rj45 , PLCC SWITCH Applications
Brand: LINK-PP
SKU: HFJ11-S101E-L11RL
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (193 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-S101E-L11RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                rj45 smd connector, shielded rj45 plugs


Specifications:	HFJ11-S101E-L11RL	P.N:	LPJ0215GFNL
Magnetics:	Butterworth Filter	Ethernet:	10 Base-T
Standards:	IEEE802.3i Compliant	LEDs:	Optional
Hipot:	1500Vrms	Samples:	Available

Specifications:	HFJ11-S101E-L11RL
P.N:	LPJ0215GFNL
Magnetics:	Butterworth Filter
Ethernet:	10 Base-T
Standards:	IEEE802.3i Compliant
LEDs:	Optional
Hipot:	1500Vrms
Samples:	Available

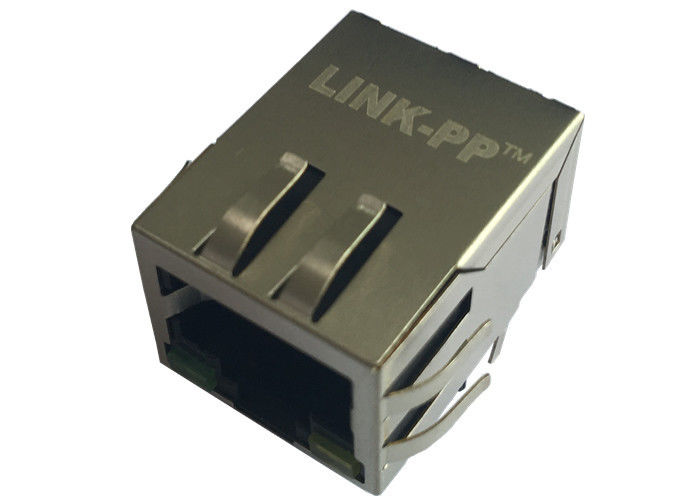

HFJ11-S101E-L11RL Network Connector Rj45 , PLCC SWITCH Applications

HFJ11-S101E-L11RL Network Connector Rj45 , PLCC SWITCH Applications

Compatible to 1x1 10BASE-T Filter Tab Down RJ45

1.10BASE-T Ethernet RJ45 LPJ0215GFNL
2.IEEE802.3i Compliant
3.100% Compliance Testing
4.1500Vrms Hi-Pot
5.Proprietary Robust Contact Design
6.30µ” Gold Plating on Contacts
7.Integrated Butterworth Filter

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

FastJack™ 1x1 10BASE-T Filter Tab Down RJ45, Meeting IEEE 802.3i

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
