Model Number: HFJT1-E2450-L12RL
Payment & Shipping Terms
Minimum Order Quantity: 500PCS
Price: $0.09-$1.75
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 300000/Month
Part Number: |
HFJT1-E2450-L12RL |
Family: |
Halo HFJT1 |
Number Of Ports: |
1 Port |
Applications Speed: |
10/100 Base-TX |
Minimum Operating Temperature: |
- 40 °C |
Maximum Operating Temperature: |
+ 85 °C |
Contact Material: |
Phosphor Bronze |
Contact Plating: |
Gold |
Part Number: |
HFJT1-E2450-L12RL |
Family: |
Halo HFJT1 |
Number Of Ports: |
1 Port |
Applications Speed: |
10/100 Base-TX |
Minimum Operating Temperature: |
- 40 °C |
Maximum Operating Temperature: |
+ 85 °C |
Contact Material: |
Phosphor Bronze |
Contact Plating: |
Gold |
| Overview |

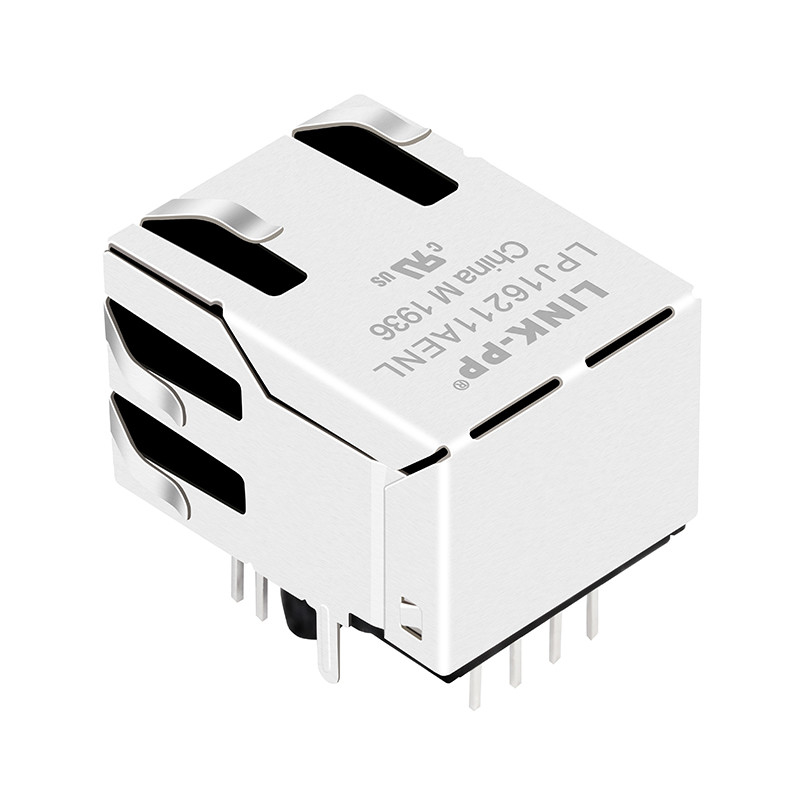

RJ45 Connector With 10/100 Base-TX Integrated Magnetic TAB-UP |
|---|---|
| Ports Configuration |
1x1 |
| Shielding | Shielded, EMI Finger |
| LED L / R Color |
Green / Yellow |
| Number of Positions / Contacts | Per Port 8P8C |
| Tab Direction | Up |
| Mounting Style |
Through Hole |
| Body Orientation | Right Angle |
| Applications Speed | 10/100 Base-TX |
| Operating Temperature | - 40 °C to + 85 °C |
| Certification | ISO9001/ROHS/CE/FCC |
| Termination Method | Solder |
| Pitch | 2.5400 mm |
| Hi-Pot | 1500Vrms |
| Turns Ratio | TX=1CT:1CT RX=1CT:1CT |
| Inductance 0CL | 350uH min with 8mA bias current |
| Wave solder tip temperature | 260°C Max |
| Wave solder tip temperature time | 5 Sec Max |
1. 10/100BASE-T Ethernet RJ45, ensuring high-performance data transmission.
2. IEEE802.3u Compliant, meeting industry standards for reliability.
3. 350uH min OCL at 8mA DC Bias Across the full Temp Range, optimizing magnetic performance.
4. 30u" Gold Plating (min) on Contacts, ensuring durable and corrosion-resistant connections.
5. 100% Compliance Testing, guaranteeing adherence to specifications.
6. 1500Vrms Hi-Pot, ensuring robust insulation properties.
7. Proprietary Robust Contact Design, enhancing overall connector durability.
The LINK-PP Ethernet Magjack integrates magnetics into the connector package, saving space with a proven circuit design. Available in tab-down, tab-up, vertical and low-profile styles, these connectors feature a rugged contact design for high quality and reliability. Single port tab-up, vertical, or top entry configurations Suitable for leading PHY vendor ICs. Rigorously tested to meet IEEE802.3 and UL safety requirements. LINK-PP connectors guarantee optimal performance for a variety of Ethernet applications.
