HFJ11-E1G11E-L12RL , LPJG4826GENL RJ45 Single Port 10/100/1000TX Mbps

Name: HFJ11-E1G11E-L12RL , LPJG4826GENL RJ45 Single Port 10/100/1000TX Mbps
Brand: LINK-PP
SKU: HFJ11-E1G11E-L12RL
Price: 0.09 USD
Availability: InStock
Rating: 4.5 (124 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-E1G11E-L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, shielded rj45 plugs


Part Number:	HFJ11-E1G11E-L12RL	Mass Production:	LPJG4826GENL
Application:	10 / 100 /1000Base-T	Termination:	DIP / Side Entry
Indicators:	LEDs	Samples:	Available

Part Number:	HFJ11-E1G11E-L12RL
Mass Production:	LPJG4826GENL
Application:	10 / 100 /1000Base-T
Termination:	DIP / Side Entry
Indicators:	LEDs
Samples:	Available

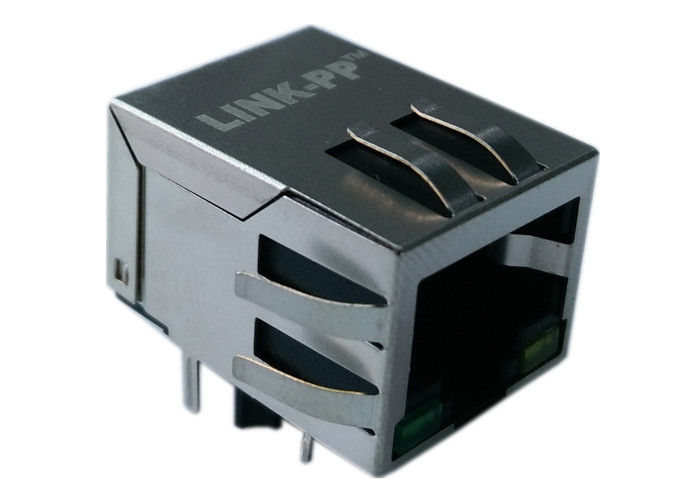

HFJ11-E1G11E-L12RL , LPJG4826GENL RJ45 Single Port 10/100/1000TX Mbps

HFJ11-E1G11E-L12RL , LPJG4826GENL RJ45 Single Port 10/100/1000TX Mbps

FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45 HFJ11-E1G11E-L12RL

1.Gigabit (10/100/1000) Ethernet RJ45

2. LINK-PP LPJG4826GENL Cross HFJ11-E1G11E-L12RL
3.350uH min OCL at 8mA DC Bias Across the Full Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45 , Meeting IEEE 802.3

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
