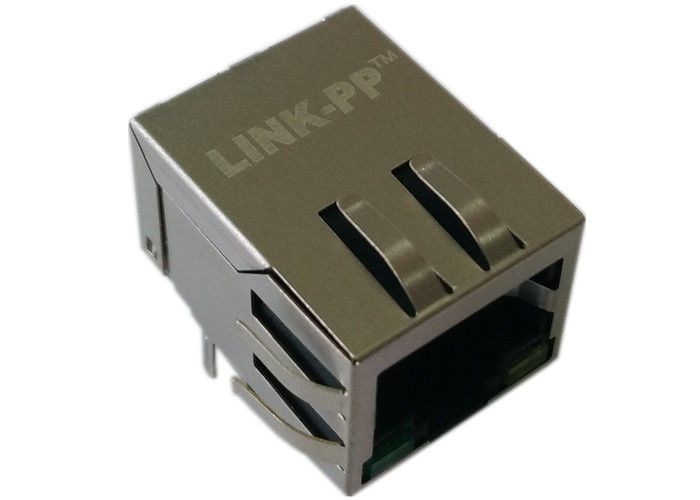

HFJ11-E1G41E-L11RL RJ45 Single Port , Gigabyte Lan 10/100/1000Mbps Jack

Name: HFJ11-E1G41E-L11RL RJ45 Single Port , Gigabyte Lan 10/100/1000Mbps Jack
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: HFJ11-E1G41E-L11RL
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-E1G41E-L11RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 smd connector, shielded rj45 plugs


Specification:	HFJ11-E1G41E-L11RL	Pat No:	LPJG4843GFNL
Munafactuer:	LINK-PP	Application:	1x10 / 100 /1000Mbps
LEDs:	Optional	Samples:	Available

Specification:	HFJ11-E1G41E-L11RL
Pat No:	LPJG4843GFNL
Munafactuer:	LINK-PP
Application:	1x10 / 100 /1000Mbps
LEDs:	Optional
Samples:	Available

HFJ11-E1G41E-L11RL RJ45 Single Port , Gigabyte Lan 10/100/1000Mbps Jack

LPJG4843GFNL : 6U
LPJG4843-9GFNL :50U
FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45
Gigabit (10/100/1000) Ethernet RJ45 IEEE802.3ab Compliant
350uH min OCL at 8mA DC Bias Across the Full Temp Range
100% Compliance Testing
1500Vrms Hi-Pot
Cross Specification Halo HFJ11-E1G41E-L11RL

Description

FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
