HFJ11-LG1GERL Conector Rj45 Gigabit Tab-Down Common Mode Choke Jack LPJG4932CNL

China HFJ11-LG1GERL Conector Rj45 Gigabit Tab-Down Common Mode Choke Jack LPJG4932CNL supplier

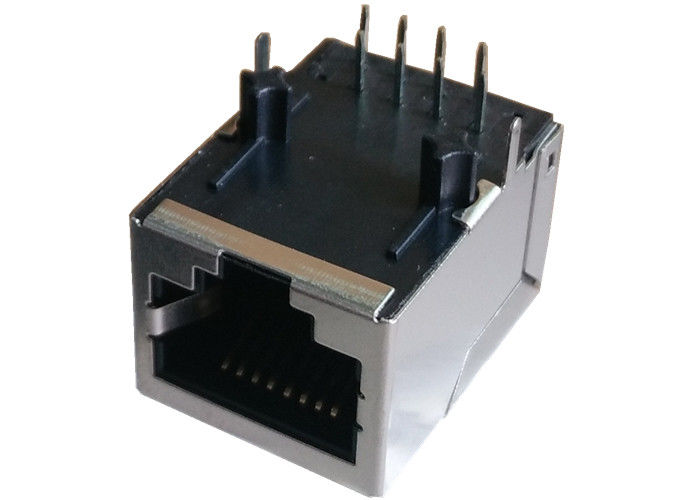

Large Image :  HFJ11-LG1GERL Conector Rj45 Gigabit Tab-Down Common Mode Choke Jack LPJG4932CNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: HFJ11-LG1GERL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Part Number: HFJ11-LG1GERL Mass Production: LPJG4932CNL
Original Munafactuer: LINK-PP Application: 10 / 100 / 1000Base-T
Termination: Solder LEDs: Optional
IC Match: LM3880QMFE-1AF/NOPB Mount Style: DIP / Side Entry

HFJ11-LG1GERL Conector Rj45 Gigabit Tab-Down Common Mode Choke Jack LPJG4932CNL

Quick Details

FastJack ™ 1x1 Tab-Down Common Mode Choke RJ45

1.Integrated Common Mode Filters
2.For use in Gigabit and 10/100BASE-TX Circuits
3.Proprietary Robust Contact Design
4.30µ” Gold Plating (min) on Contacts
5.UL Recognized Materials

6..Designing Model: 【HFJ11-LG1GERL

7..Mass Production Model:【LPJG4932CNL


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


FastJack ™ 1x1 Tab-Down Common Mode Choke RJ45 , Meeting IEEE 802.3/ af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
