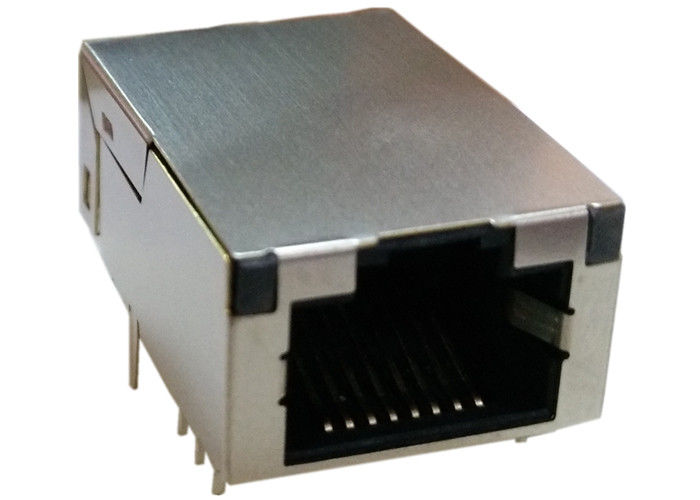

J0G-0003NL is a single port RJ45 connector for 1000BASE-T applications, featuring a 90° right-angle side-entry design, through-hole mounting, 2250 VDC isolation, and RoHS compliance.
| Item | Specification |
|---|---|
| Part Number | J0G-0003NL |
| Description | CONN,RJ45,1X1,1GD,1:1,TY NPB |
| Connector Type | RJ45 |
| Port Count | 1x1 |
| Data Rate | 1000BASE-T |
| Mounting Style | Through-Hole |
| Orientation | 90° Right Angle |
| PCB Mount Angle | Side Entry |
| Turns Ratio | 1CT:1CT |
| Isolation Voltage | 2250 VDC |
| Temperature Range | 0°C to +70°C |
| RoHS | Yes |
| LED Option | Yellow & Green / Green |
| Shield EMI Tabs | Without |
| Side EMI Tabs | No |
The J0G-0003NL single port RJ45 connector is a compact, high-performance 1x1 Ethernet connector designed for 1000BASE-T networking applications. With a 90° right-angle orientation, side-entry PCB mount, and through-hole installation, this connector is a practical choice for space-conscious equipment that needs stable Gigabit Ethernet connectivity.
Engineered for reliable signal transmission and robust electrical performance, the J0G-0003NL RJ45 connector is well suited for industrial systems, networking devices, communication equipment, and embedded Ethernet designs. Its 2250 VDC isolation voltage, 1CT:1CT turns ratio, and RoHS-compliant construction make it a dependable option for engineers looking for a single-port RJ45 solution.
The J0G-0003NL RJ45 connector is designed to support strong signal integrity across the Gigabit Ethernet range. Its electrical characteristics make it suitable for systems that require dependable transmission and controlled performance.
Electrical Specifications @ 25°C Operating Temperature: 0°C to +70°C
| Parameter | Test Range | Typical Performance |
|---|---|---|
| Insertion Loss (TX/RX) | 1–100 MHz | -1.0 dB |
| Return Loss | 1–10 MHz | -18 dB |
| Return Loss | 30 MHz | -18 dB |
| Return Loss | 60–80 MHz | -12 dB |
| Return Loss | 80–100 MHz | -10 dB |
| Crosstalk | 1–10 MHz | -40 dB |
| Crosstalk | 32–65 MHz | -35 dB |
| Crosstalk | 65–1000 MHz | -30 dB |
| Common Mode Rejection | 1–125 MHz | -30 dB |
| Hipot / Dielectric Withstand Test | 60 Hz, 1 minute | 1500 Vrms |
The J0G-0003NL single port RJ45 connector can be used in a wide range of Ethernet-enabled products, including:
The J0G-0003NL single port RJ45 connector is a strong fit for 1000BASE-T Ethernet designs that need a compact right-angle, side-entry, through-hole solution. With solid electrical performance, reliable mechanical mounting, and RoHS compliance, it is an excellent choice for engineers sourcing a 1x1 RJ45 connector for professional networking and industrial applications.
The J0G-0003NL is a single port RJ45 connector used for 1000BASE-T Gigabit Ethernet connections in networking, industrial, and embedded applications.
Yes. It features a 90° right-angle orientation and side-entry PCB mount design.
Yes. It is designed for 1000BASE-T applications.
The isolation voltage is 2250 VDC.
Yes, it is RoHS compliant.
