Home ProductsLow-Profile RJ45 Jack

L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet

China L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet supplier
L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet supplier L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet supplier L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet supplier

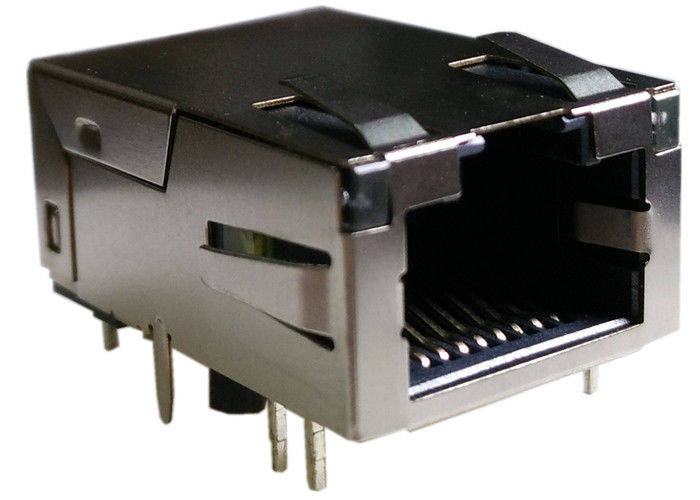

Large Image :  L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: L829-1J1T-43

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Specifications: L829-1J1T-43 P/N: LPJK7036A98NL
Mechanical: 24.04x16.85x11.30mm Application: 10/100/1000mbps
Termination: Solder Samples: Available

L829-1J1T-43 Low-Profile RJ45 Jack | LPJK7036A98NL Gigabit Ethernet

Pulse Jack Low Profile 1x1 Tab-Up
  • 1.RoHS “NL” peak solder rating 260°C
  • 2.Low height and small footprint to minimize board space
  • 3.Meets IEEE 802.3ab specification
  • 4.350µH minimum OCL with 8mA bias current
  • 5.High performance for maximum EMI suppression
  • 6. 11.30mm Height LPJK7036A98NL

Description
Belfuse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3ab
Single Port Low Profile 8p8c RJ45 Connector with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJK7036A98NL
Belfuse Part Number L829-1J1T-43 / L829-1J1T-43-F
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GRREN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.04
Package Width (mm) 16.85
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
