L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL

China L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL supplier
L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL supplier L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL supplier

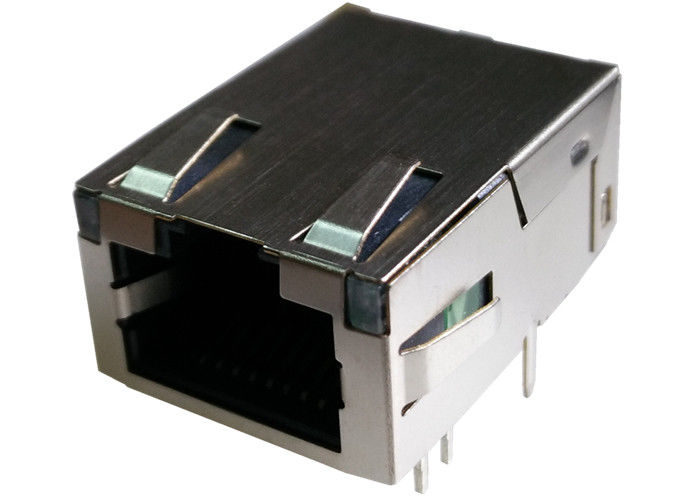

Large Image :  L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: L869-1A1T-32

Payment & Shipping Terms:

Minimum Order Quantity: 200 / 1000
Price: Supportive
Packaging Details: 60pcs/tray;960pcs/Carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Specifications: L869-1A1T-32 Mass Production: LPJK7436AHNL
Application: 100/ 1000 Base-T Termination: Solder
LEDs: Green -Yellow Mount Style: DIP / Side Entry
Cross RF: LPJK7436AHNL = L869-1A1T-32 Height: 11.30mm

L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL

11.30mm Height Ultra Low Profile Rj45 Low Profile 1x1 Tab-Up 1000Base-T Magjack.



  • 1.RoHS “NL” peak solder rating 260°C
  • 2.Low height and small footprint to minimize board space
  • 3.Meets IEEE 802.3 specification
  • 4.350µH minimum OCL with 8mA bias current
  • 5.High performance for maximum EMI suppression
  • 6.Designing Model: L869-1A1T-32 equivalent / cross part, pin to pin compatible replacement
  • 7.Mass Production Model: LPJK7436AHNL



L869-1A1T-32 Gigabit Magjack Ultra Low Profile Rj45 LPJK7436AHNL



MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.

Description

Pulse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3ab
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN
