Home ProductsLow-Profile RJ45 Jack

1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

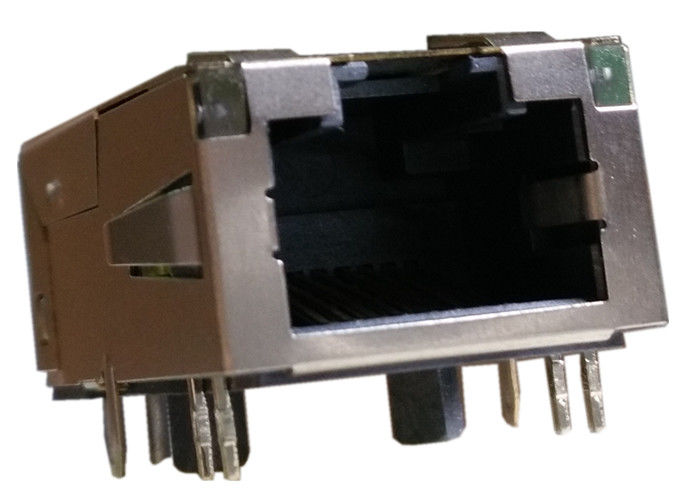

1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down
1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

Large Image :  1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1840426-1 , 1840426-2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Detailed Product Description
Part Number: 1840426-1 , 1840426-2 Mass Production: LPJKXXXXNL
Original Munafactuer: LINK-PP Application: 100/ 1000 Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAM3S1CB-CUR Mount Style: DIP / Side Entry
High Light:

ultra low profile jack


low profile rj45 connector

1840426-1 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

Quick Details

Tyco Jack Low Profile 1x1 Tab-Down

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space

3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【1840426-1 , 1840426-2

7.Mass Production Model:【LPJKXXXXNL


LED optional ; EMI-finger Optional.


Pulse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3/ af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85


     1500Vrms MIN
