1840426-3 Mag45 Modular Jack 1840426-4 Gigabit Circuit Shieeded Tab Down

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 1840426-3 , 1840426-4

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

rj45 low profile

,

low profile rj45 connector

Part Number:
1840426-3 , 1840426-4
Mass Production:
LPJKXXXXNL
Original Munafactuer:
LINK-PP
Application:
100/ 1000 Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAM3S1CB-CUR
Mount Style:
DIP / Side Entry
Part Number:
1840426-3 , 1840426-4
Mass Production:
LPJKXXXXNL
Original Munafactuer:
LINK-PP
Application:
100/ 1000 Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAM3S1CB-CUR
Mount Style:
DIP / Side Entry

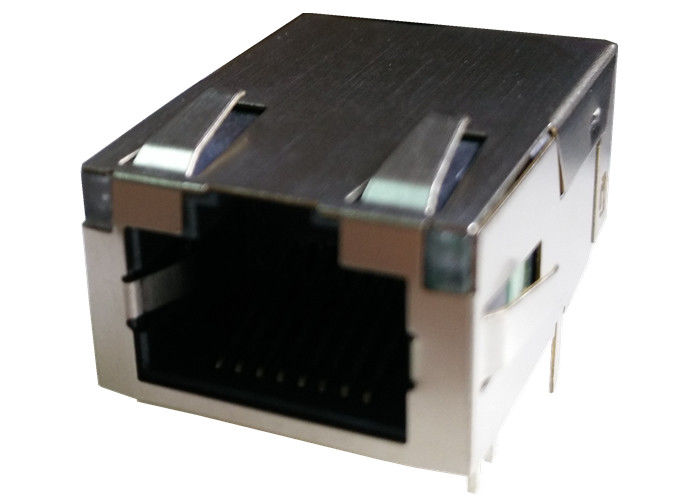

1840426-3 Mag45 Modular Jack 1840426-4 Gigabit Circuit Shieeded Tab Down
1840426-3 Mag45 Modular Jack 1840426-4 Gigabit Circuit Shieeded Tab Down

Quick Details

Tyco Jack Low Profile 1x1 Tab-Down

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space

3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【1840426-3 , 1840426-4

7.Mass Production Model:【LPJKXXXXNL


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description
Pulse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3/ af/at

LINK-PP Part Number LPJKXXXXXNL

Tyco Part Number

1840426-3 , 1840426-4
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LED
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.13
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
